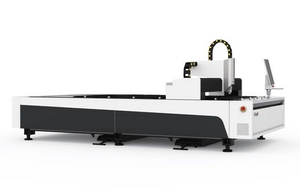

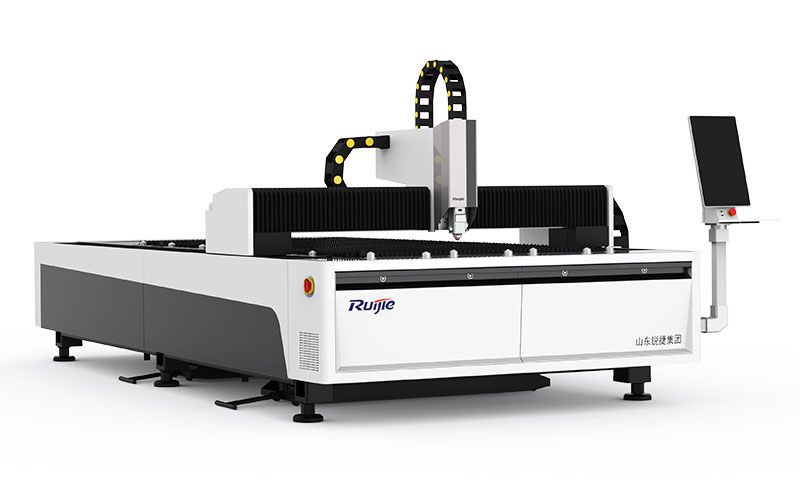

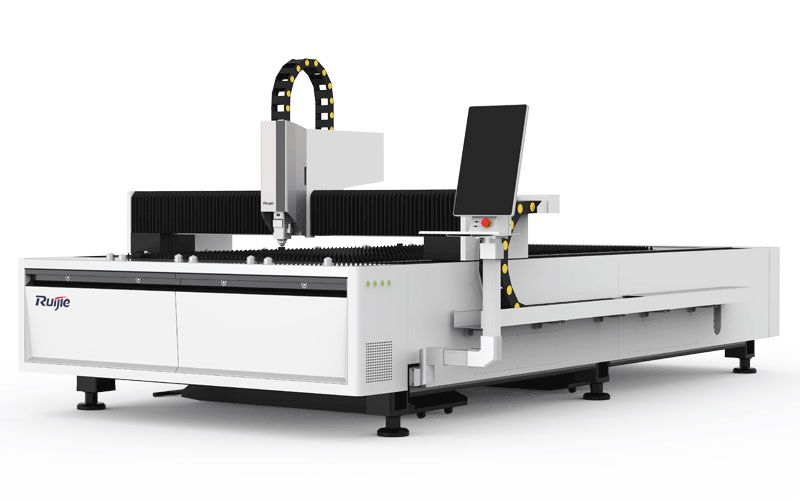

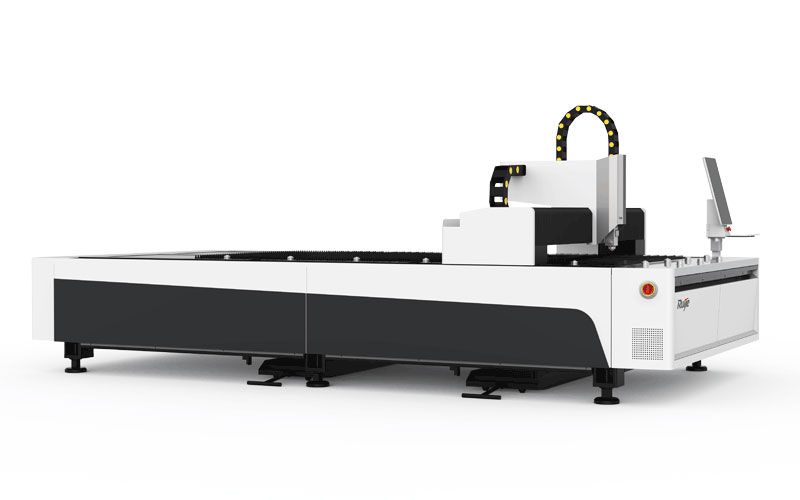

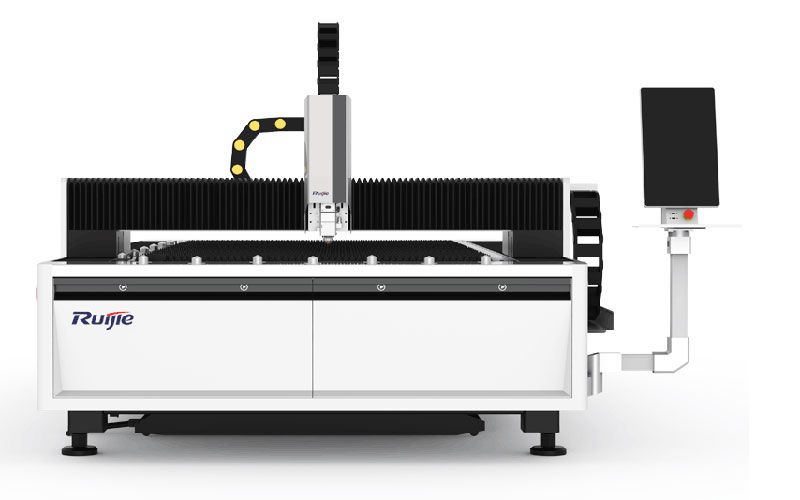

Economical Fiber Laser Cutting Machine, RJ-3015S
Laser metal cutter for sheet metal cutting

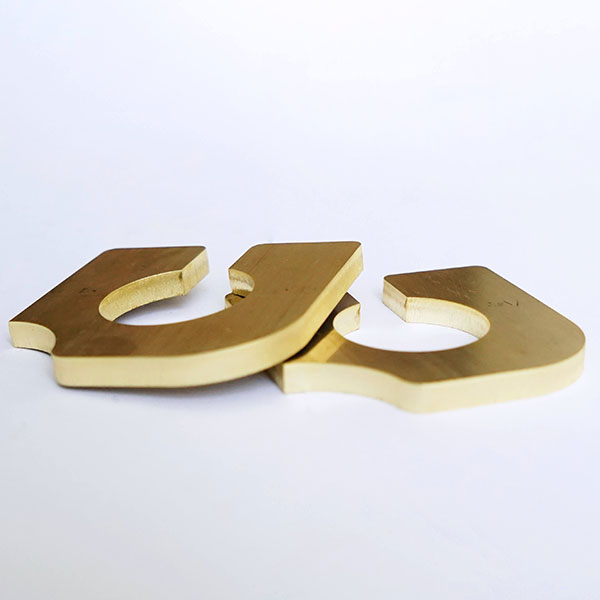

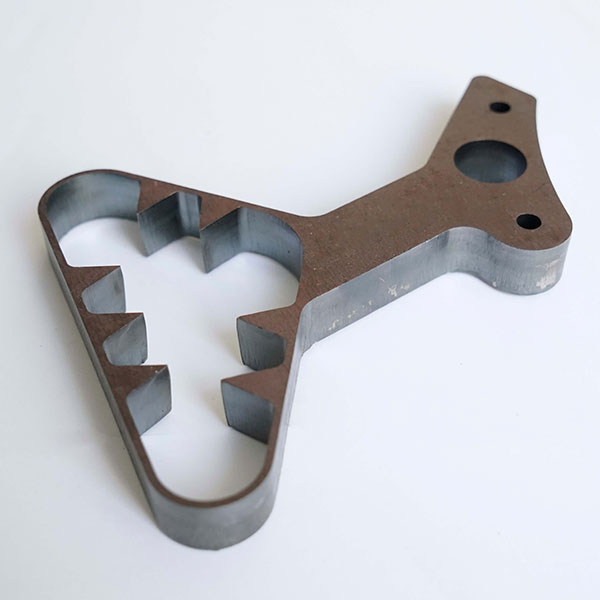

Our RJ-3015S fiber laser cutting machine is an entry-level laser cutter ideally suitable for metalworking plants who have no high demand for fine processing of sheet metals. This sheet metal cutting machine can be widely used in sectors such as light fixtures, cookware, decorative materials, machine enclosures, and other applications requiring sheet metal processing.
- Cutting area
- 3000×1500mm
- Laser power
- 1000-2000W (optional)
- Positioning accuracy
- ±0.03mm
- Repositioning accuracy
- ±0.02mm
- Power supply
- AC 380V, 3-phase, 50/60Hz
- Max. cutting speed
- 70m/min
- Cooling method
- water cooling
-
-

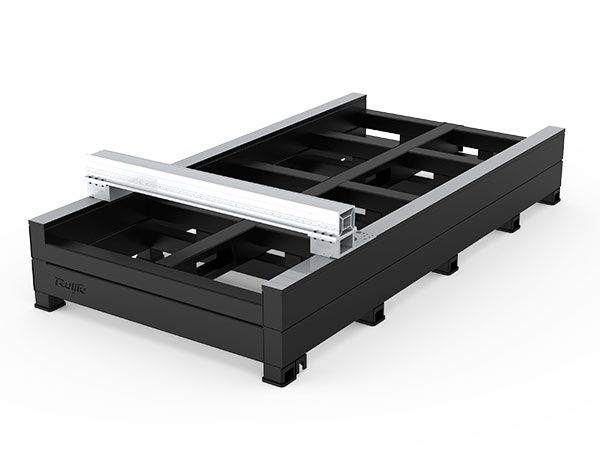

Segmented Rectangular Tube Welded Bed
The machine body is welded using rectangular pipe with wall thickness of 6mm and total weight of 3,000kg, ensuring high strength and a 20 year service life without distortion.
-
-

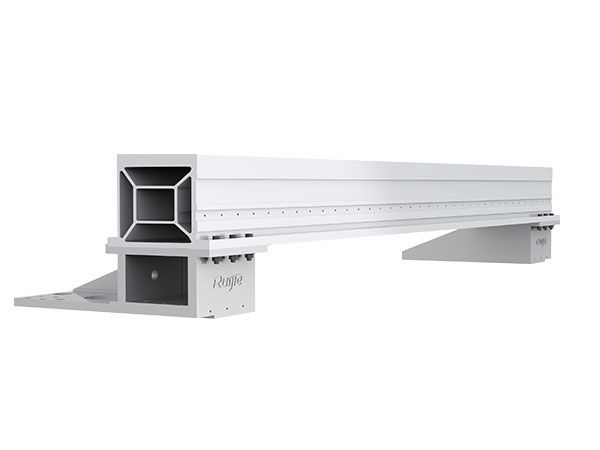

Aviation Aluminum Crossbeam
The crossbeam is made from aviation aluminum alloy that provides the laser cutting machine with good dynamic performance, significantly improving working efficiency while guaranteeing processing quality.
-
-

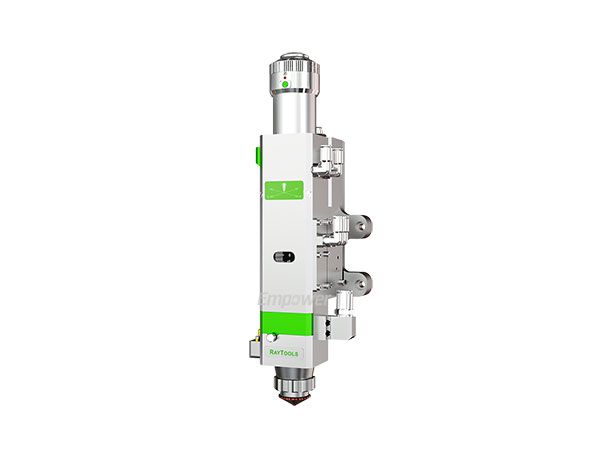

Auto Focus Laser Cutting Head
The laser cutting head allows for automatically adjusting focus lens to an appropriate position by software. The laser head is completely sealed to prevent internal structure and optical parts from dust pollution.
-
-

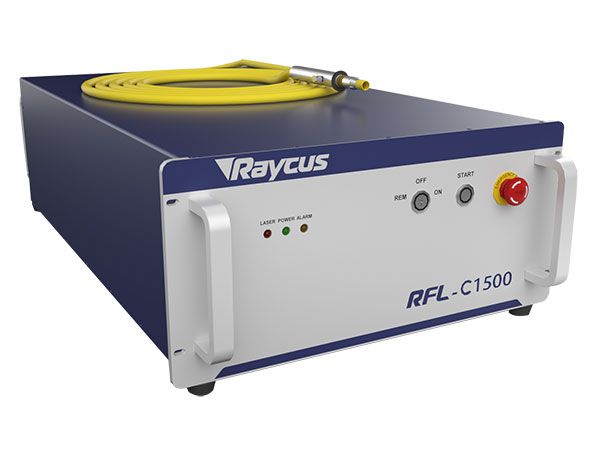

Raycus Laser Source
This laser source directly controls all types of fiber laser functions, realizing synchronous control of laser source. The control cabinet is individually placed.
-
-

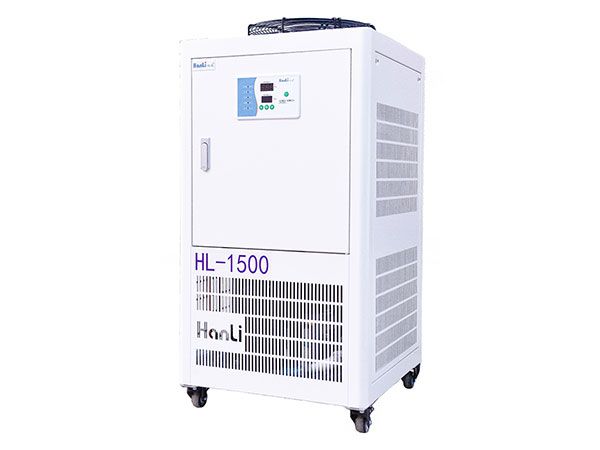

Chiller
The chiller features dual cooling functions, specifically for cooling laser source and laser head.
-
-

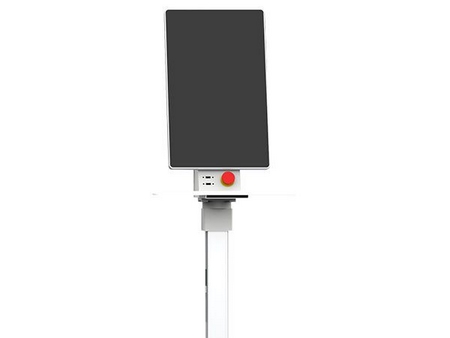

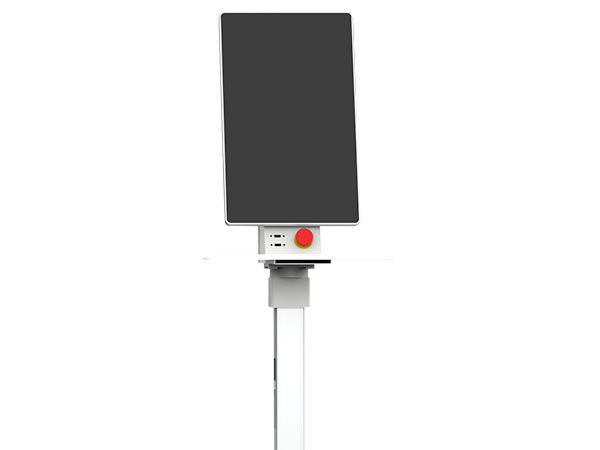

IPAD Screen Design
Tempered glass panel design provides high definition effect and smooth operation.
-
-

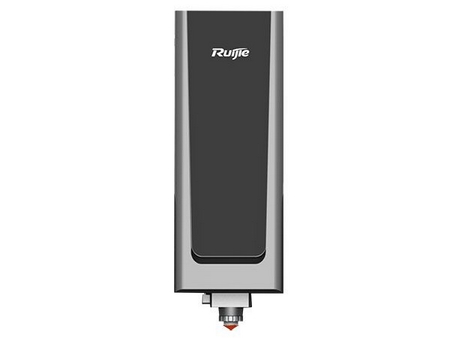

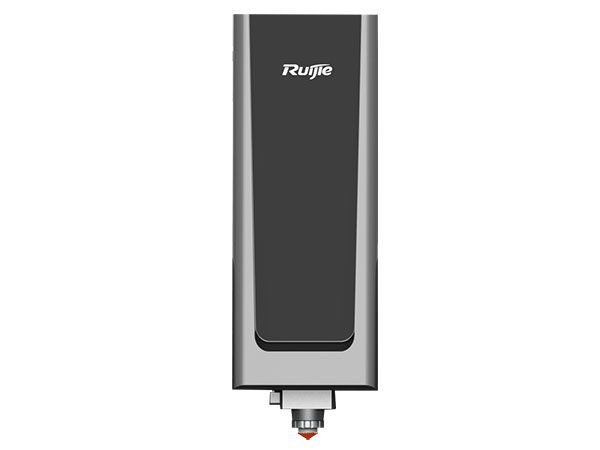

Newly Developed Laser Head Protective Cover
The laser head is guarded by protective cover which allows for clear observing of red light, good heat dissipation and minimal dust, efficiently avoiding cause the gas path inside the cutting head to burn.
