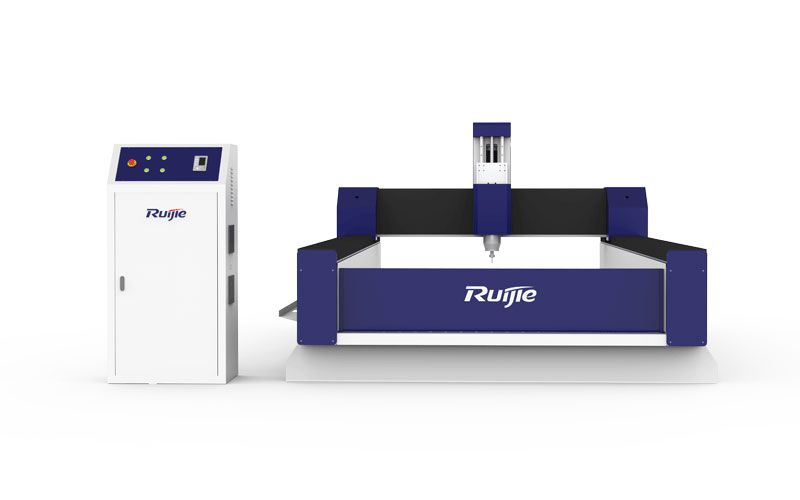

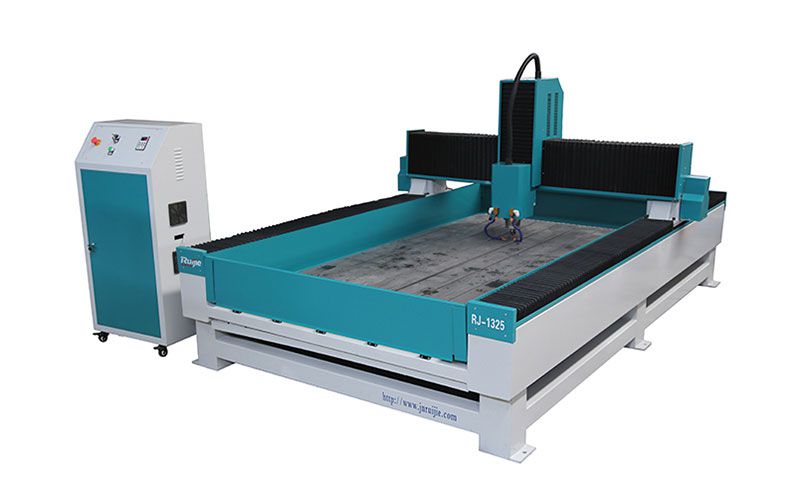

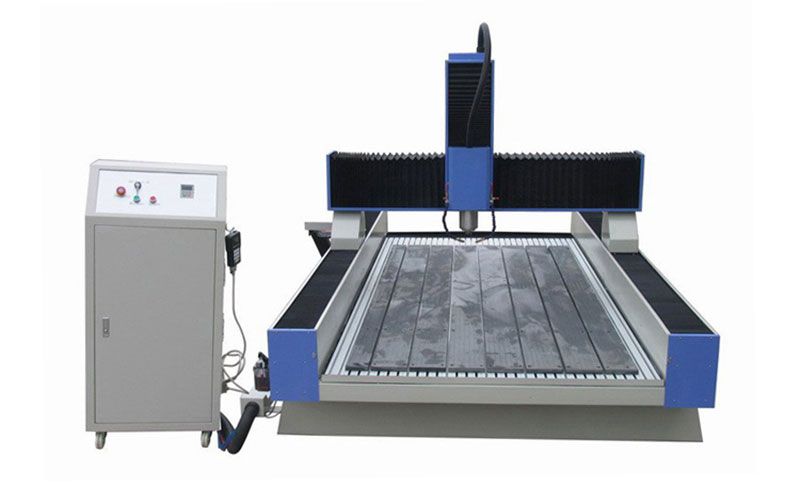

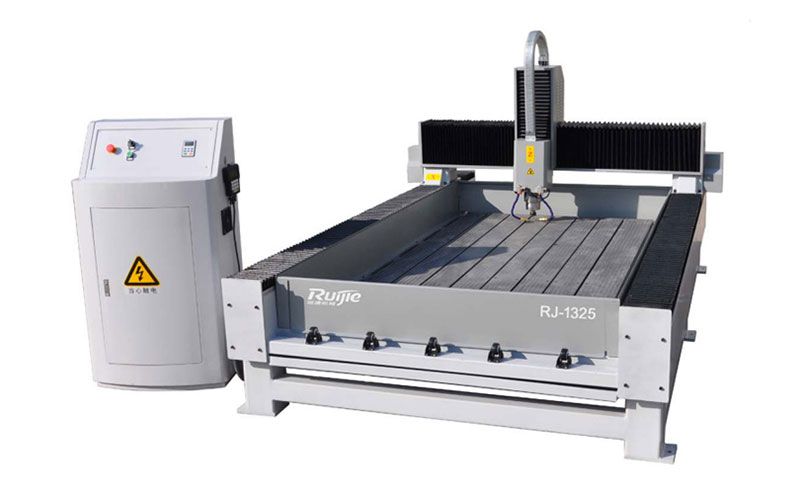

Marble CNC Router
Marble CNC router is particularly designed for carving on marble and stone. The machine body is constructed with a steel welded structure and subjected to stabilization treatment process, ensuring high strength and minimum distortion. Two spray nozzles are connected to a large water pump for constant cooling of tools and materials. This stone carving CNC router features dustproof and waterproof design to protect all moving parts from being polluted.

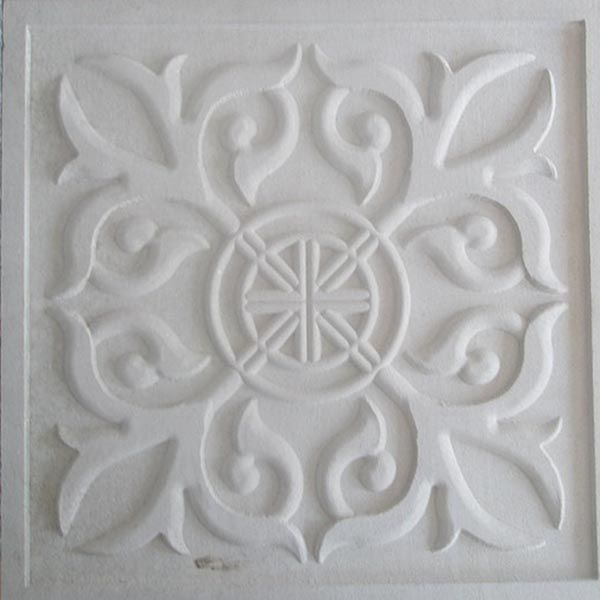

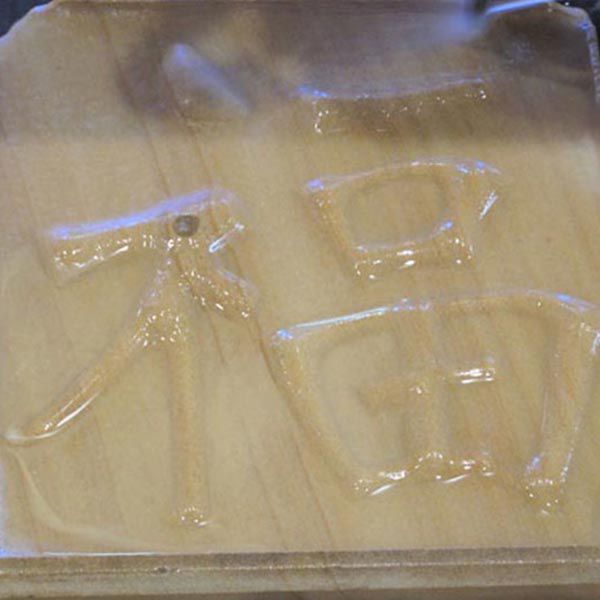

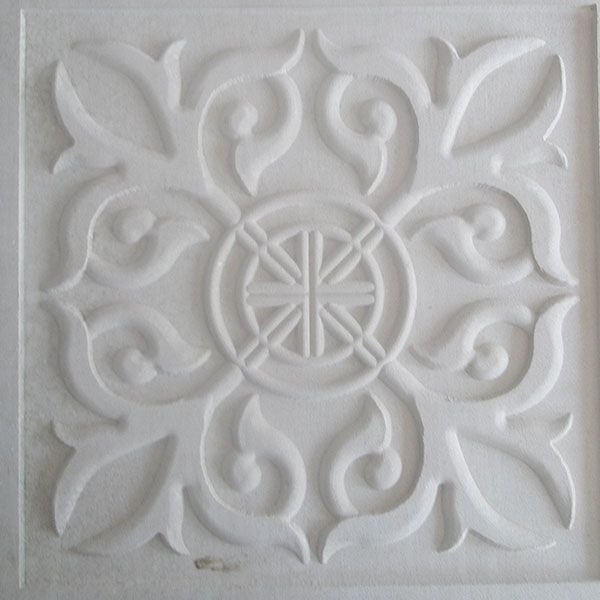

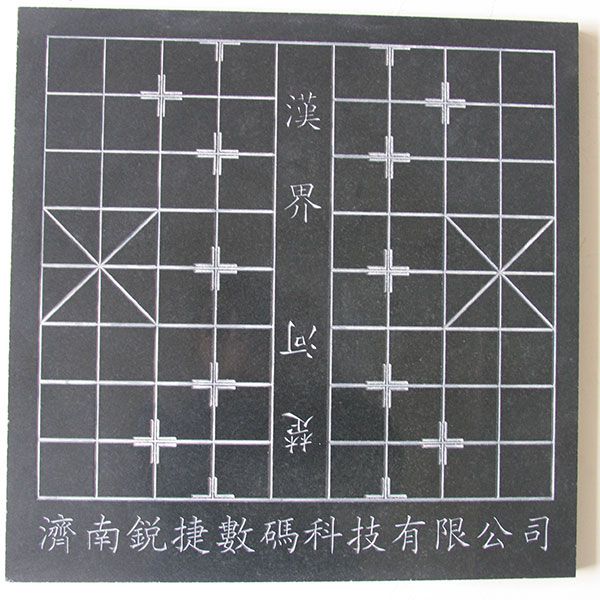

The marble CNC router is suitable for relief carving, line carving, cutting, chamfering and drilling of natural marble, granite, artificial stone, headstone, milestone, ceramic tile and glass.
| Model | | | | |
| Working area (mm) | 600×900mm | 900×1800mm | 1200×2400mm | 1300×2500mm |
| Z-axis travel height | 300mm | |||
| Engraving depth | 150mm | |||
| Max. traveling speed | 6000mm/min | |||
| Working accuracy | ±0.05/300min | |||
| Spindle power | 3.0kW | |||
| Tool diameter | Ø3.175mm, Ø6mm, Ø12.7mm | |||
| X/Y/Z guide rails | Linear guide rails | |||
| Transmission | X/Y axis rack and pinion, Z axis ball screw | |||
| Voltage | AC380V/50HZ | |||
| Command code | HPGL, G Code | |||
-
-

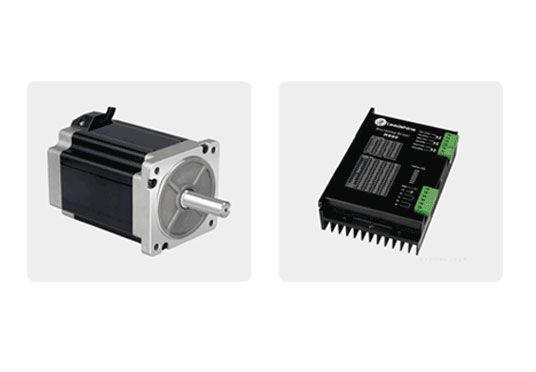

Stepper motor
Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy. With no adjustments needed, the drive system makes sure the CO2 laser machine is performing at its peak efficiency with less maintenance.
-
-

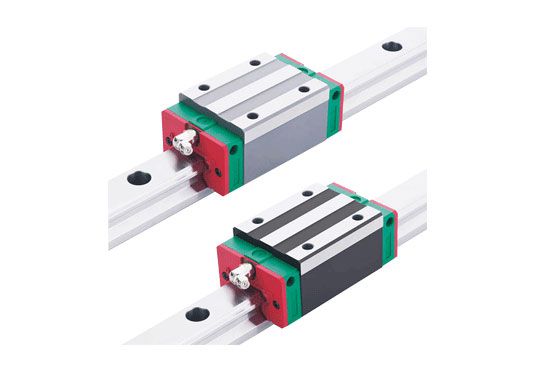

Linear guide rail
Square linear guides from world's renowned brand are used to ensure high precision, large loading capacity and long service life.
-
-

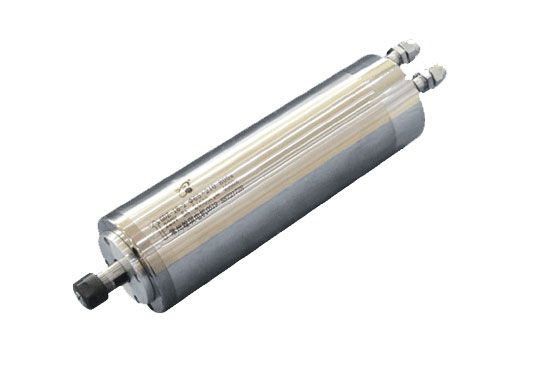

Powerful spindle
High power brushless water-cooled spindle ensures reliable operation with less noise, allowing operator to perform batch processing for a long time.
-
-

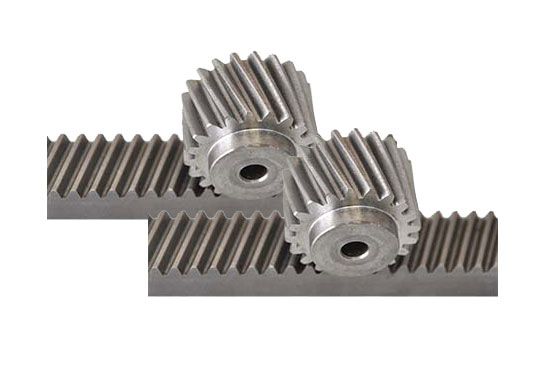

Rack and pinion transmission
The rack and pinion transmission guarantees high speed and high precision.
-
-

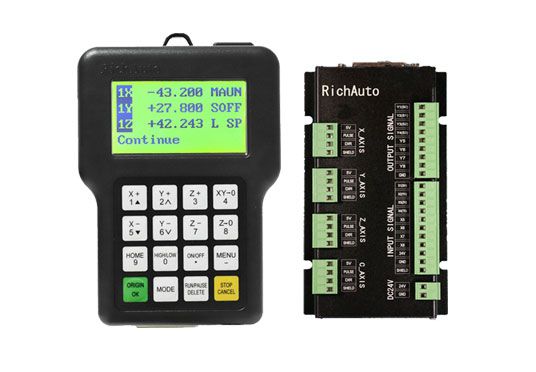

Richauto DSP
DSP control plays a vital role in the operation of CNC router. Richauto DSP control can achieve fast computing speed and strong processing capacity. 16-key keyboard, simple to use;
Multi-language display, easy to change languages;
