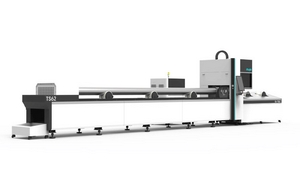

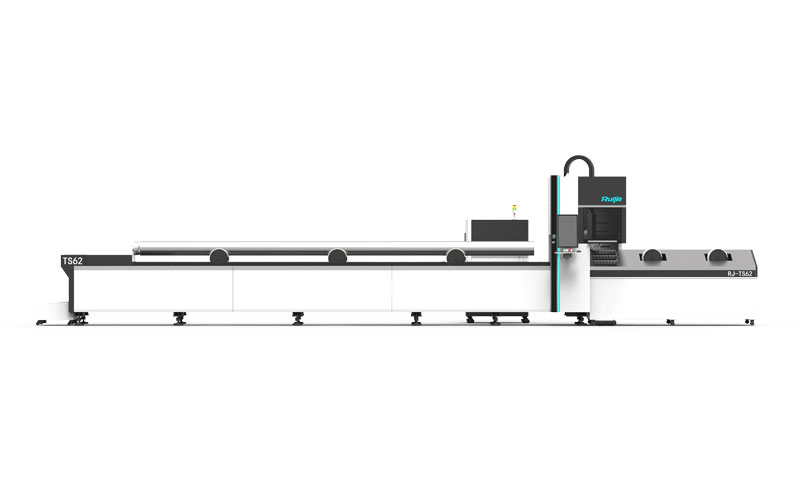

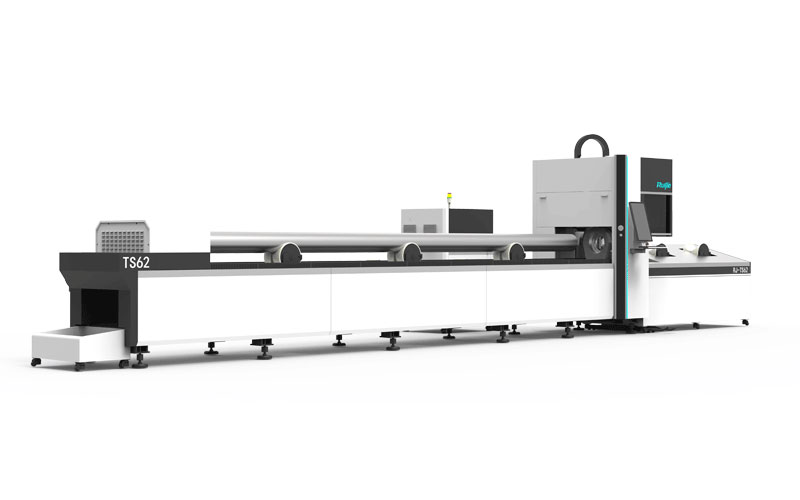

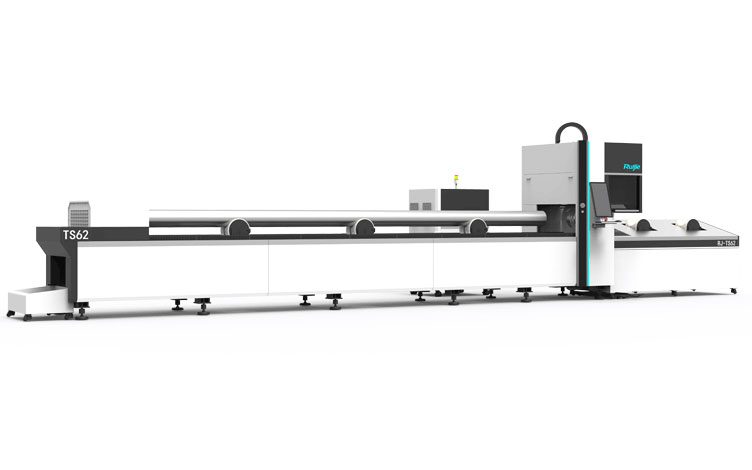

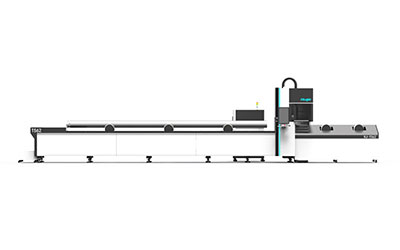

Fiber Laser Tube Cutting Machine, RJ-TS62

Laser metal cutter for metal tube and profile cutting

Fiber Laser Tube Cutting Machine, RJ-TS62
Fiber Laser Tube Cutting Machine, RJ-TS62 Fiber Laser Tube Cutting Machine, RJ-TS62 Fiber Laser Tube Cutting Machine, RJ-TS62
Request a Quote
RJ-TS62

RJ-TS62 fiber laser cutting machine is particularly designed for efficiently cutting and perforating metal square tubes, round tubes, oval tubes, rectangular tubes and various tubular elements and profiles.

Videos
Specifications
Cutting area
6000×Ø220mm (tube length × diameter, diameter range of 0-Ø220mm)
Laser power
1000-8000W (optional)
Max. cutting speed
50m/min
Laser wavelength
1070nm±10nm
Repositioning accuracy
±0.03mm
Power supply
AC 380V, 3-phase, 50/60Hz

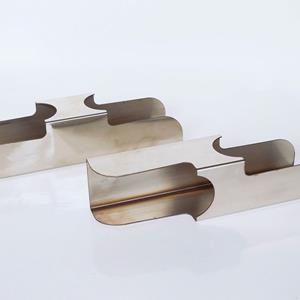

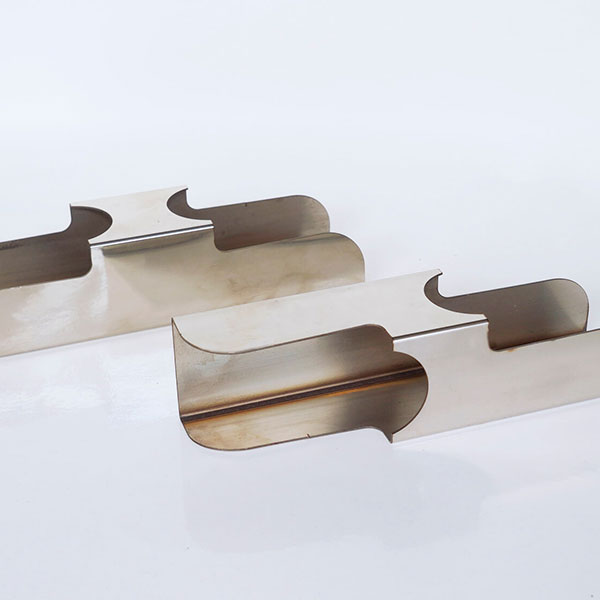

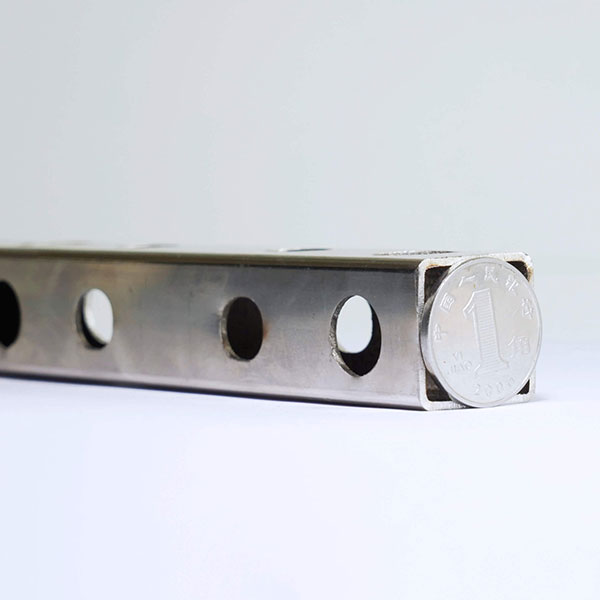

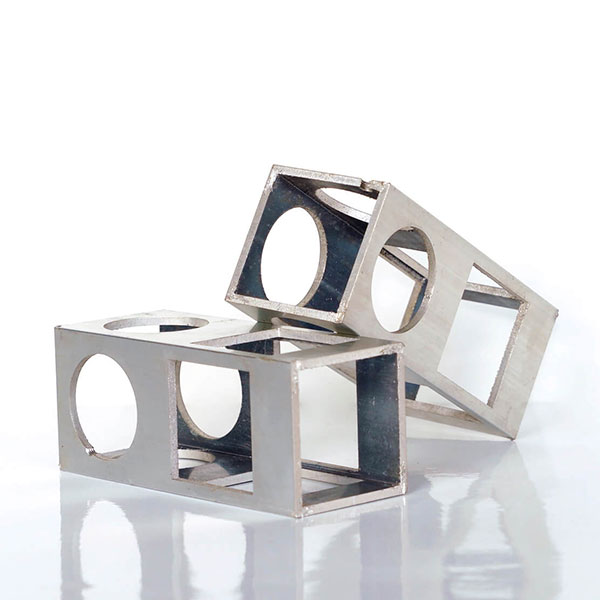

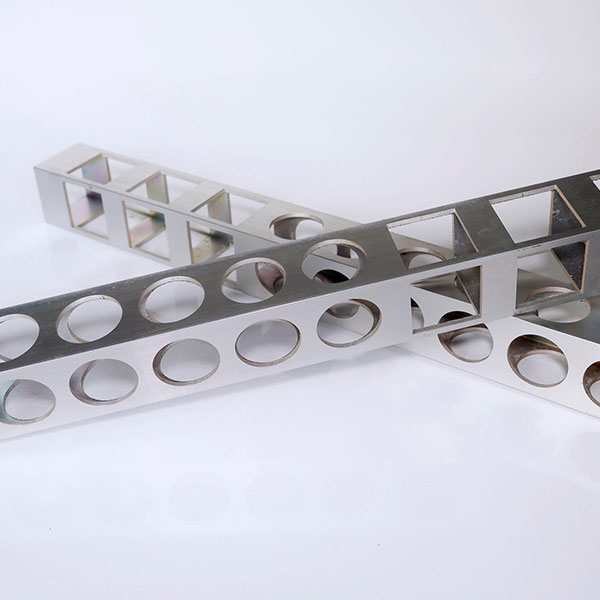

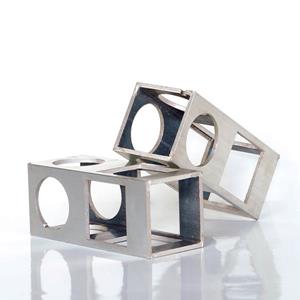

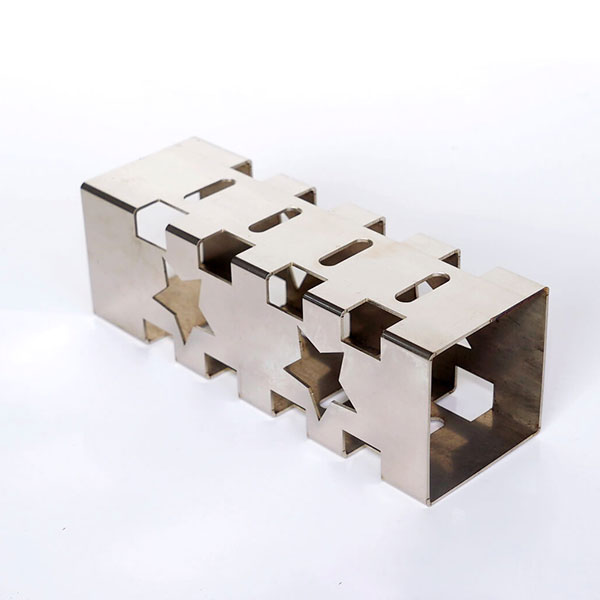

Laser Cutting Samples
Laser Cutting Samples
Laser Cutting Samples
Laser Cutting Samples
Laser Cutting Samples
Laser Cutting Samples
Machine Features

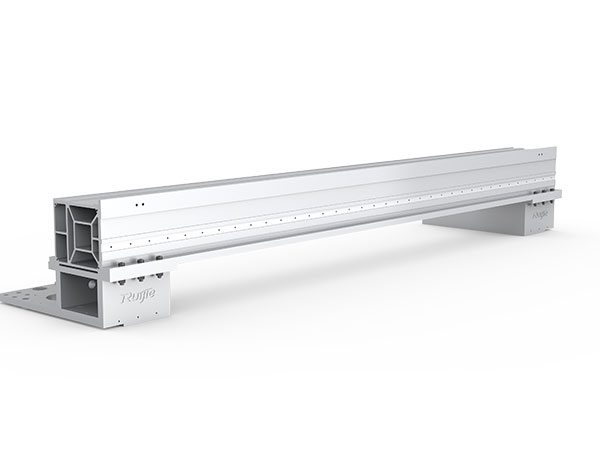

  • Cast Aluminum Crossbeam

  • Cast Aluminum Crossbeam

    The latest generation cast aluminum crossbeam is built using high strength aviation aluminum alloy, ensuring high tenacity of structure.

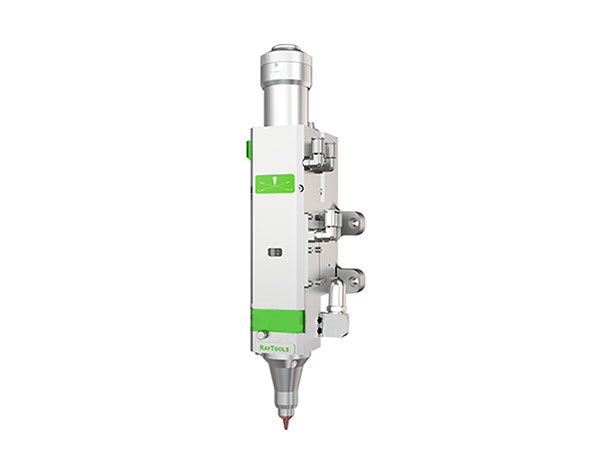

  • Auto Focus Laser Cutting Head

  • Auto Focus Laser Cutting Head

    The laser cutting head allows for automatically adjusting focus lens to an appropriate position, eliminating the need for manual focusing.

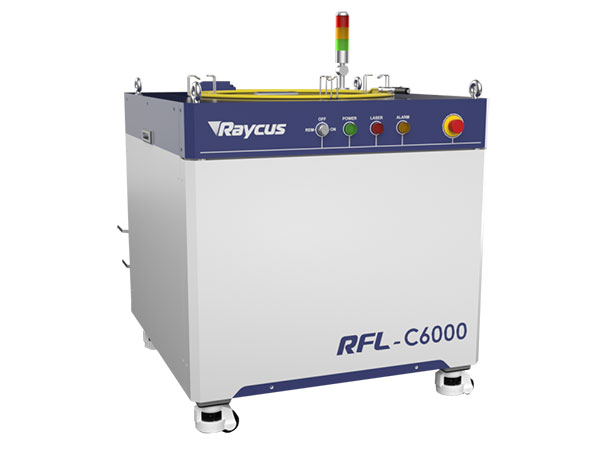

  • Laser Source

  • Laser Source

    This laser source directly controls all types of fiber laser functions, realizing synchronous control of laser source.

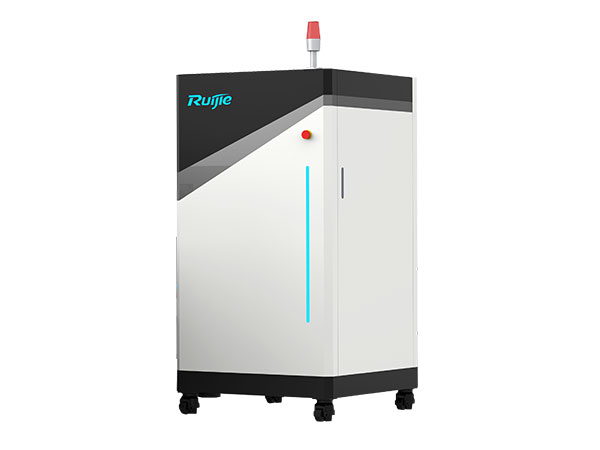

  • Independent Control Cabinet

  • Independent Control Cabinet

    The control cabinet features a design of dustproof and vibration resistance, efficiently prolonging the service life of electrical components.

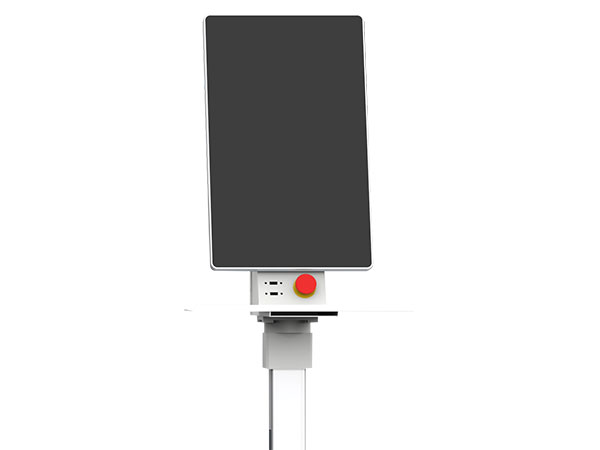

  • IPAD Screen Design

  • IPAD Screen Design

    Tempered glass panel design provides high definition effect and smooth operation.

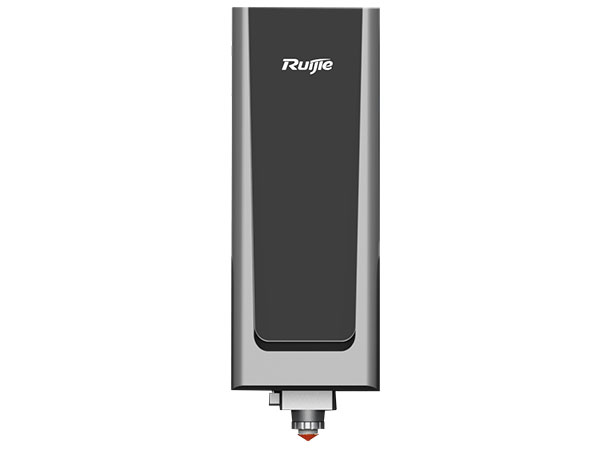

  • Newly Developed Laser Head Protective Cover

  • Newly Developed Laser Head Protective Cover

    The laser head is guarded by protective cover which allows for clear observing of red light, good heat dissipation and minimal dust, efficiently avoiding cause the gas path inside the cutting head to burn.

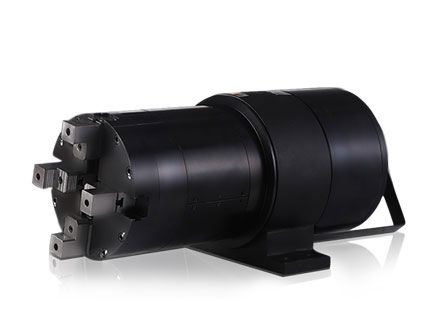

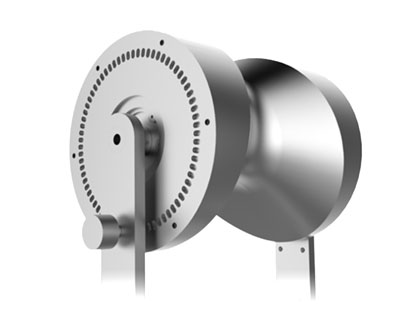

  • Chuck

  • Chuck

    The chuck permits quick adjusting and precise positioning of metal tubes with different sizes, providing good adaptability. The rear chuck features extended length, enabling the cutting tailing to be further shortened therefore maximizing utilization rate of the material.

  • Fractional Automatic Support

  • Fractional Automatic Support

    The automatic tube support system allows for rapid loading of metal tubes and reducing tube oscillation, therefore ensuring high precision of cutting.
