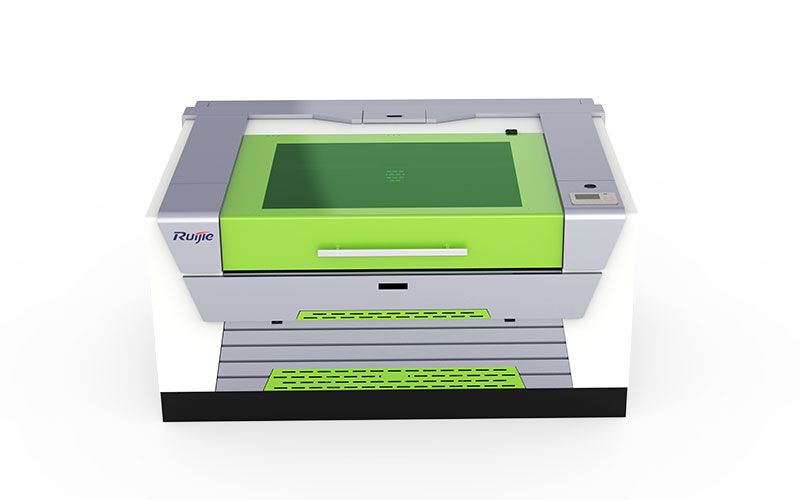

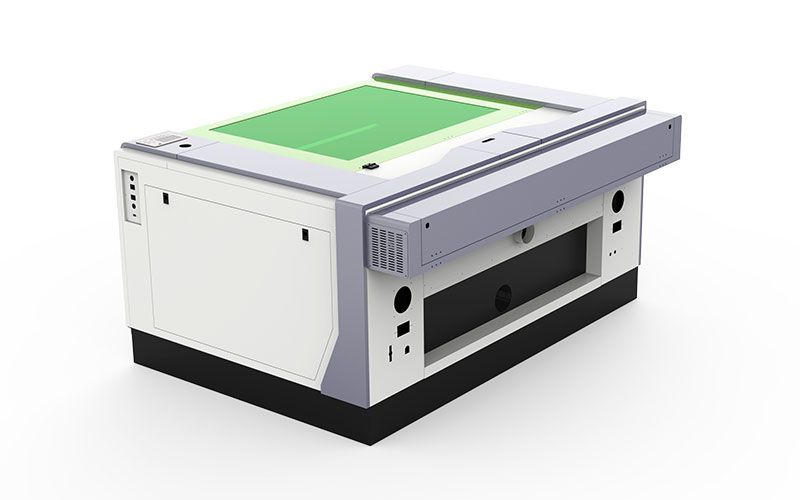

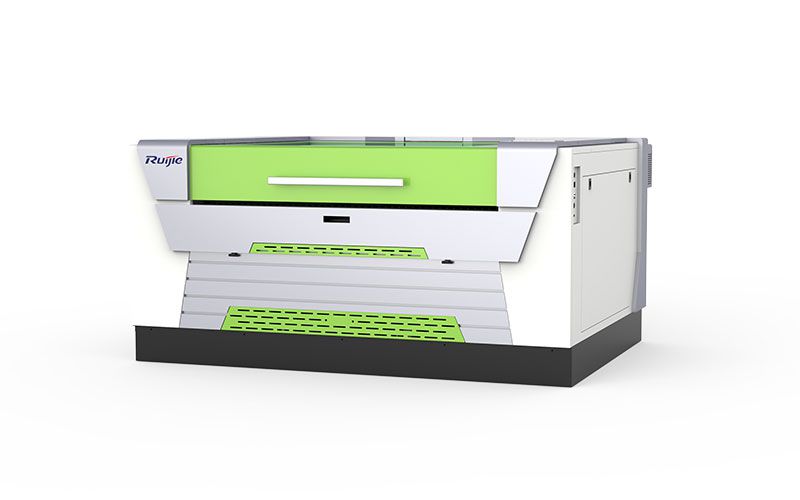

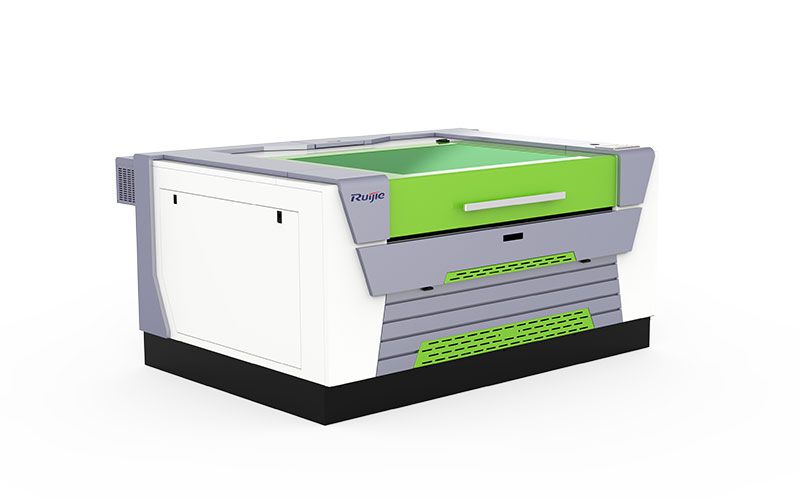

CO2 Laser Cutting and Engraving Machine, RJ-1390A
RJ-1390A laser cutting and engraving machine is our basic model of CO2 laser machine that utilizes a motor paired with a transmission belt or a ball screw to drive the laser head. The CO2 laser cutting machine permits easy designing of the cutting patterns via computer, ensuring high cutting precision and fast cutting speed. The processed products are provided with by burr-free and smooth cut edge, meeting various customer expectations of engraving and cutting equipment that has features of low noise level, high work efficiency and low material waste.
| Working area | 1300mm×900mm |
| Laser tube type | DC glass laser tube (CO2) |
| Laser wavelength | 10.6um |
| Laser power | 60W,80W,130W,150W |
| Engraving speed | 0-1200 mm/s |
| Cutting speed | 0-600mm/s |
| Repositioning accuracy | ≤±0.01mm |
| Cooling system | Water cooling |
| Control system | Digital offline control system |
| File format | PLT,DST,DXF,DWG,AL,LAS |
| Software | Support AutoCAD, CorelDRAW output directly |
| Electric lifting worktable | Ball screw transmission, maximum lifting height of 260mm |
| Drive system | Stepper motor |
| Minimum character size | Chinese: 1.5mm English: 1mm |
| Power supply | AC 220V/110V ±10% 50HZ/60HZ |
| Machine power | ≤1500W |
| Working environment | Temperature: 0-45°C Humidity: 5%-95% |

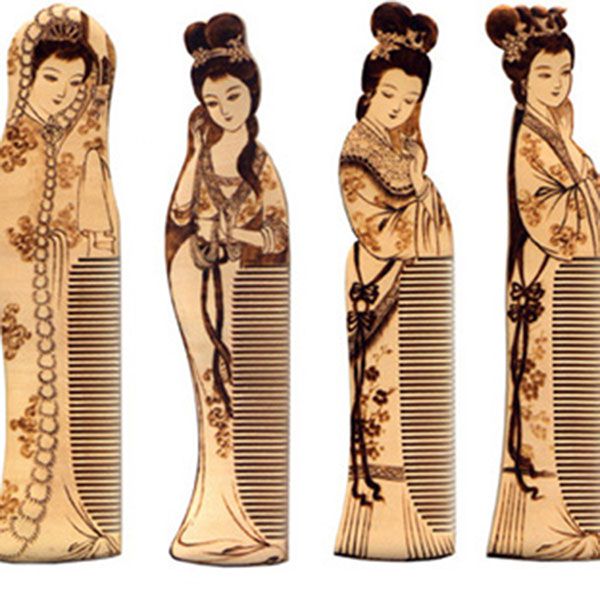

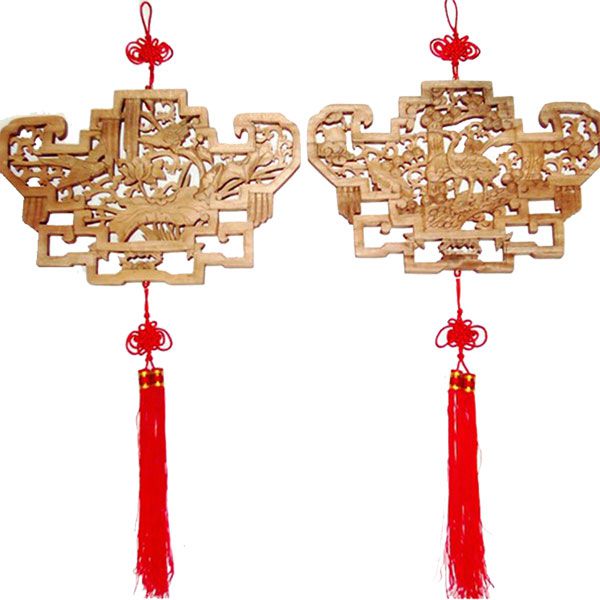

Crafts

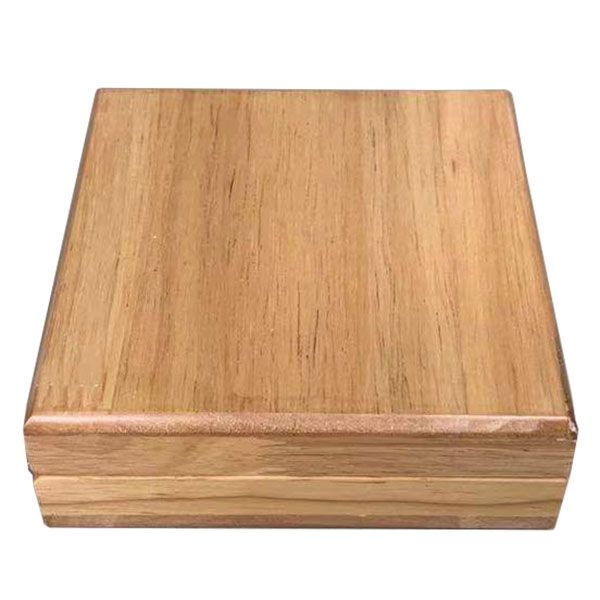

souvenirs, gifts, wooden packaging boxes, bamboo crafts, wood planks, wood plaques, bamboo plaques

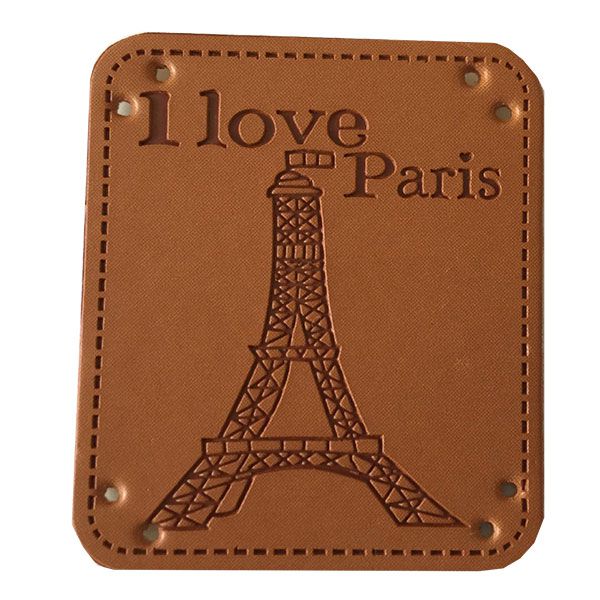

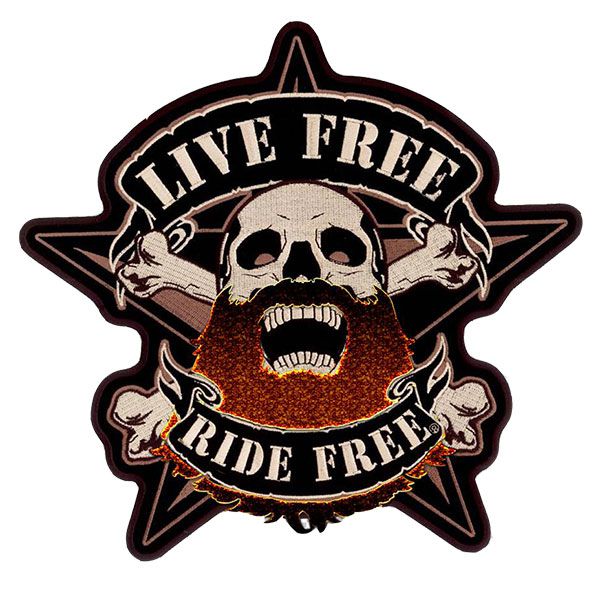

Signs
leather signs, embroidered signs, trademarks, appliques

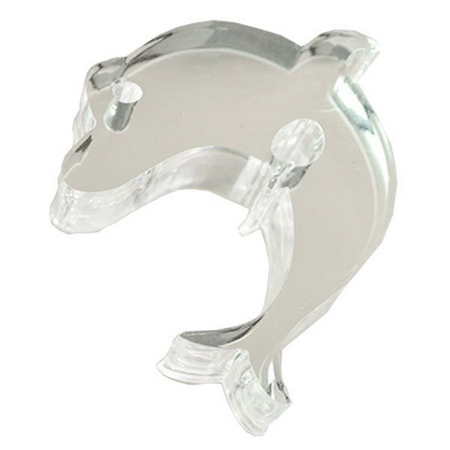

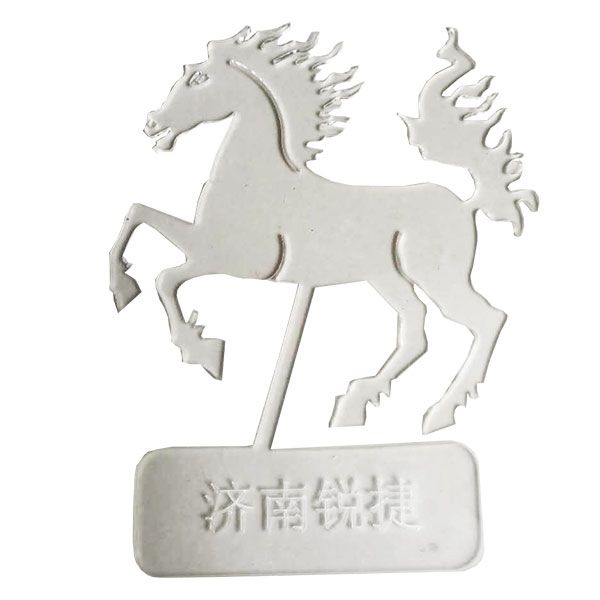

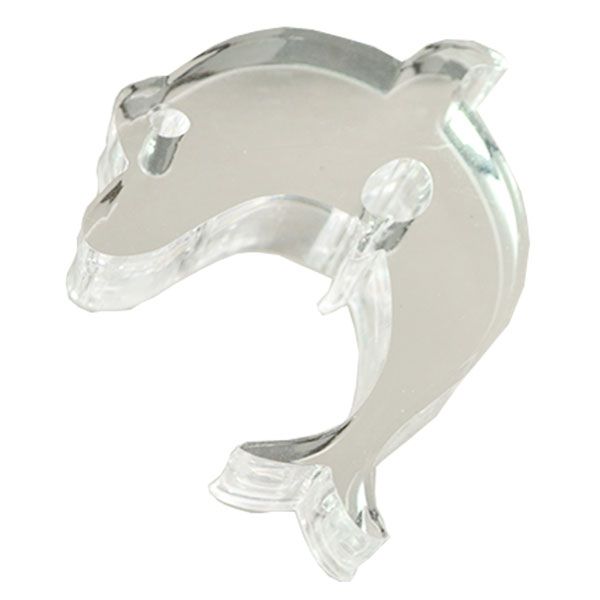

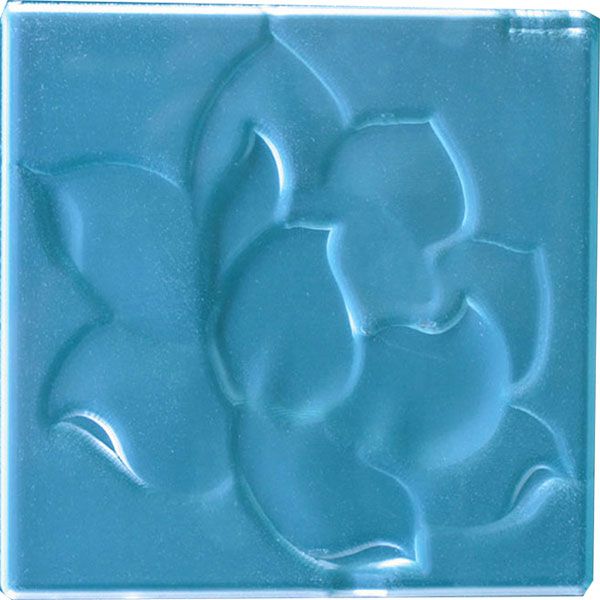

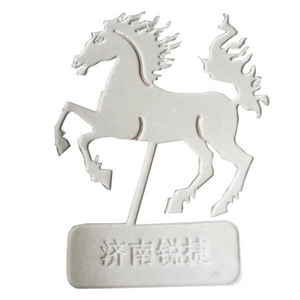

Acrylic products

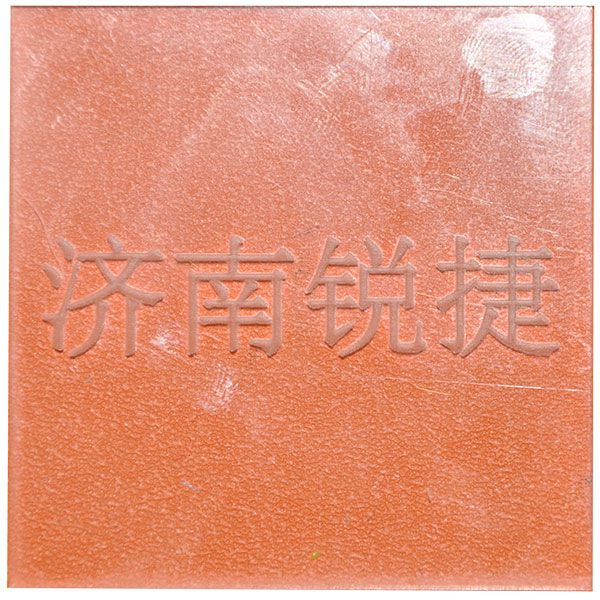

acrylic trophies, acrylic signs, acrylic models, acrylic crafts

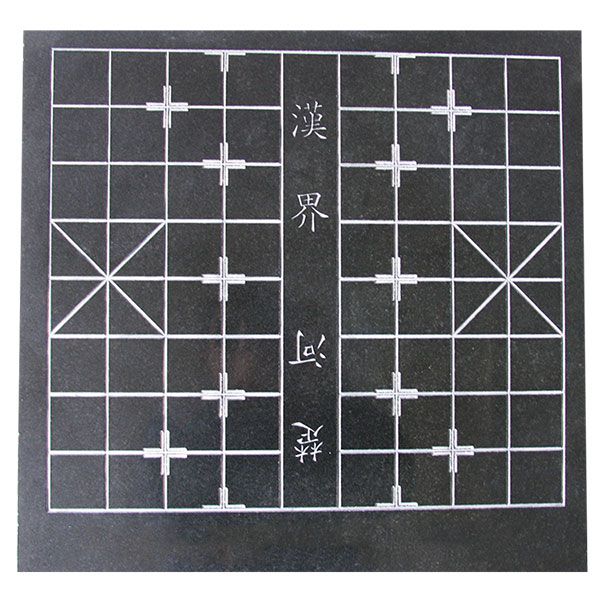

Construction & decorative materials

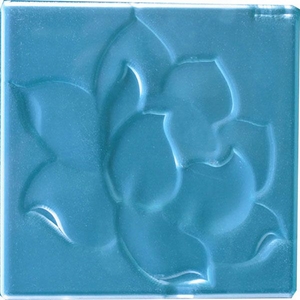

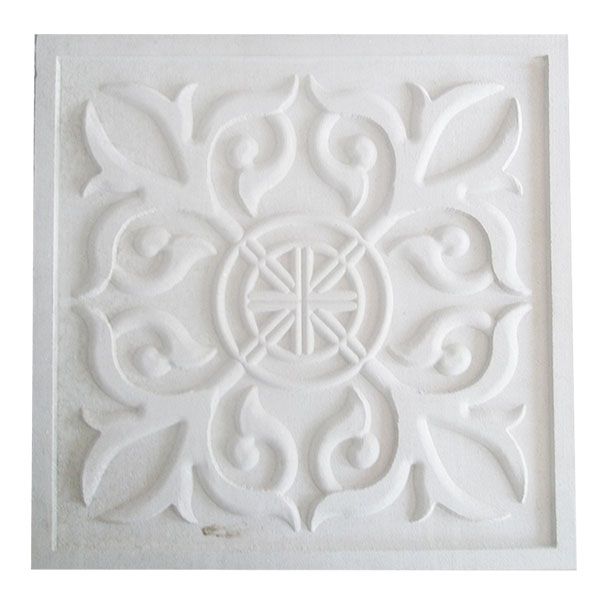

marble headstones, glass sculptures, wall tiles, marble wall arts

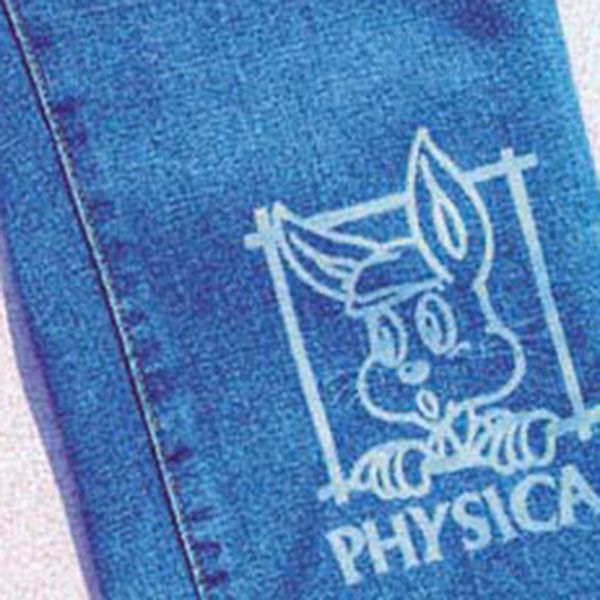

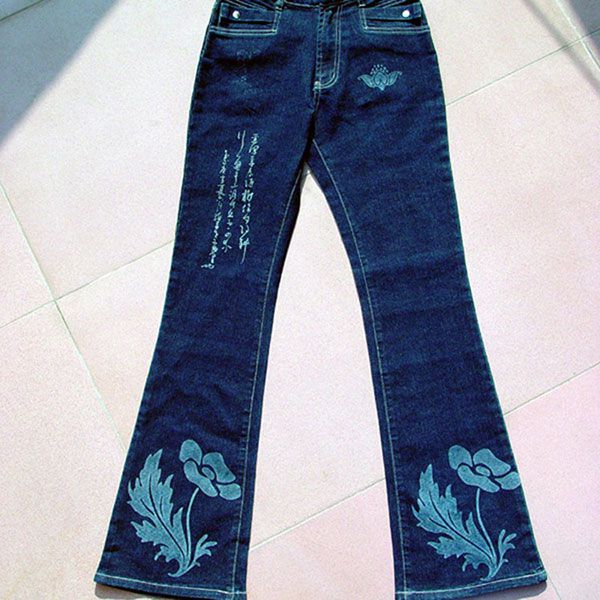

Textiles
tablecloth, sofa, cushion, jeans, fabric
-
-

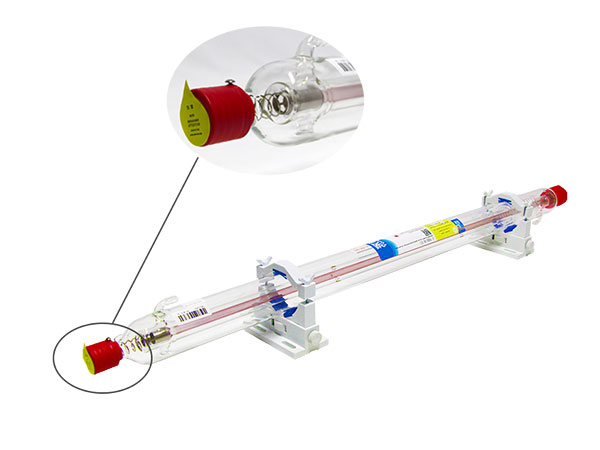

Laser tube
Yongli or RECI CO2 laser tube is adopted due to their mature technology and reliable quality, ensuring stable cutting speed and high cutting precision. The CO2 laser tubes are featured by long service life and low failure rate.
-
-

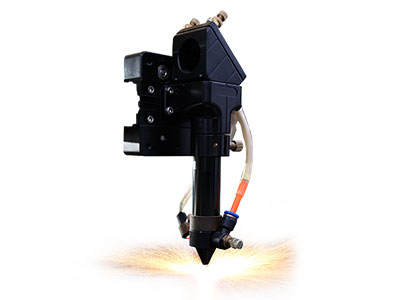

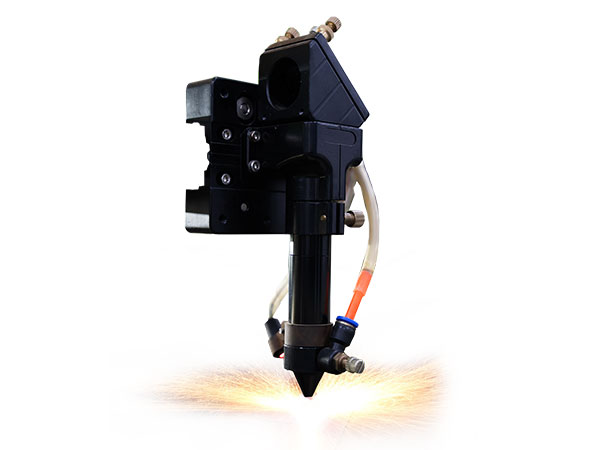

Laser head
Red dot pointer system quickly indicates laser head's path, enabling it to achieve high cutting precision, and automatic focus adjustment to improve cutting speed and working efficiency.
-
-

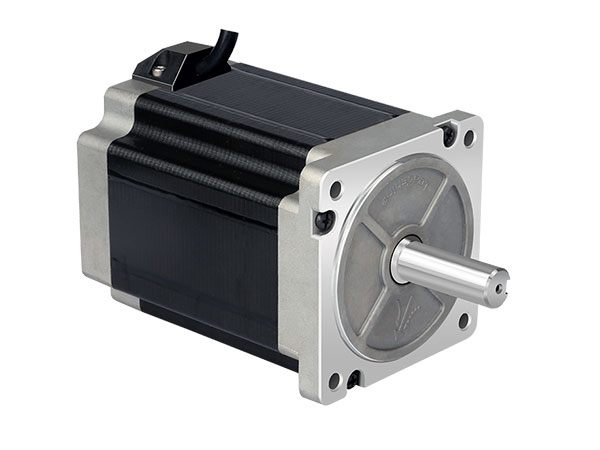

Stepper motor
Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy.
-
-

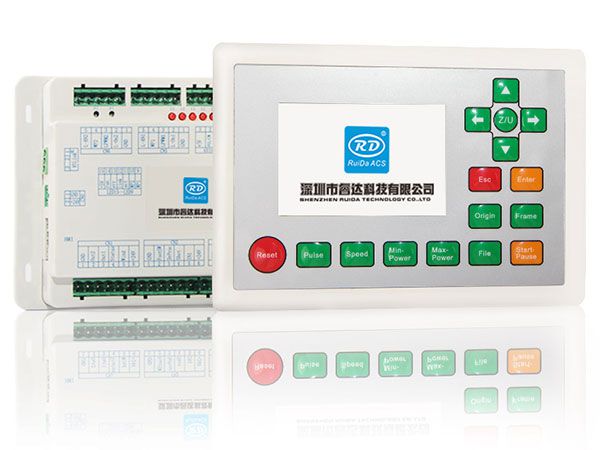

Control system
Digital offline control system has USB port, RD and Lettro alternative. The user-friendly interface makes operation easier.
-
-

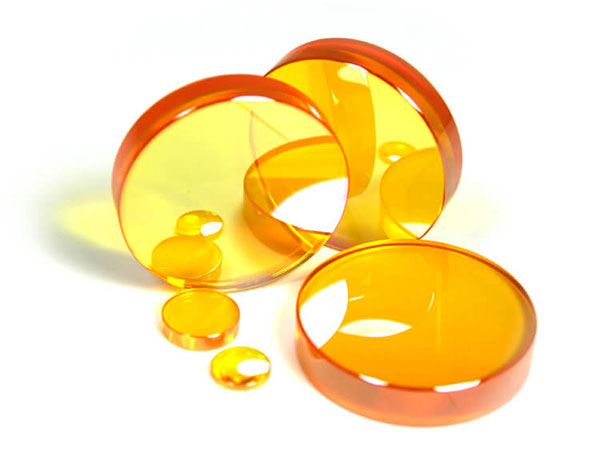

Optical components
US II-VI optical lens and ZNSE focus lens are used for high cutting efficiency.
-
-

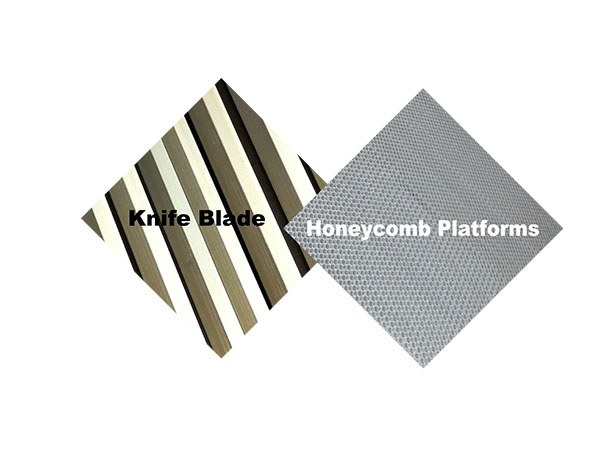

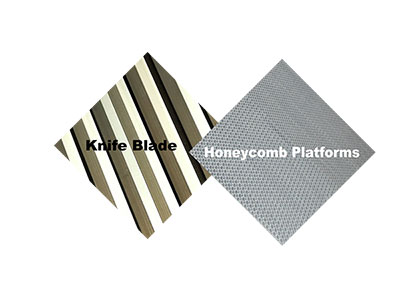

Dual worktable
Aluminum slat worktable ensures high cutting quality. Honeycomb worktable is selectable for cutting soft materials.
