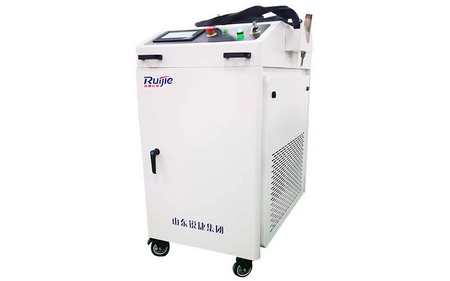

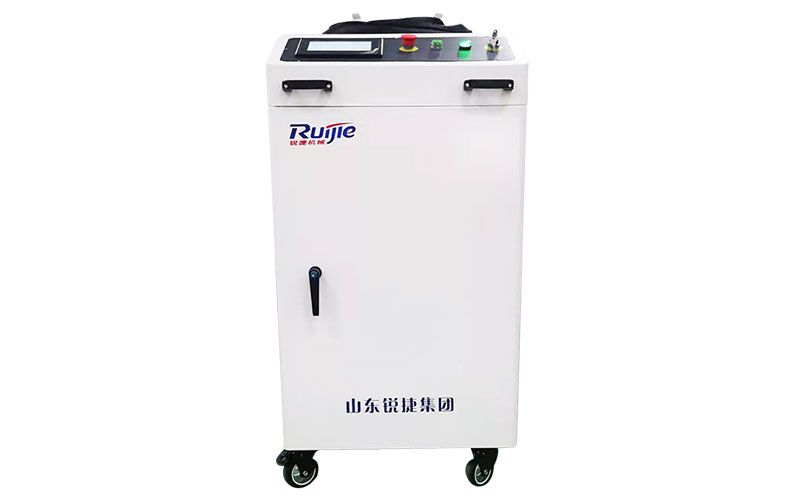

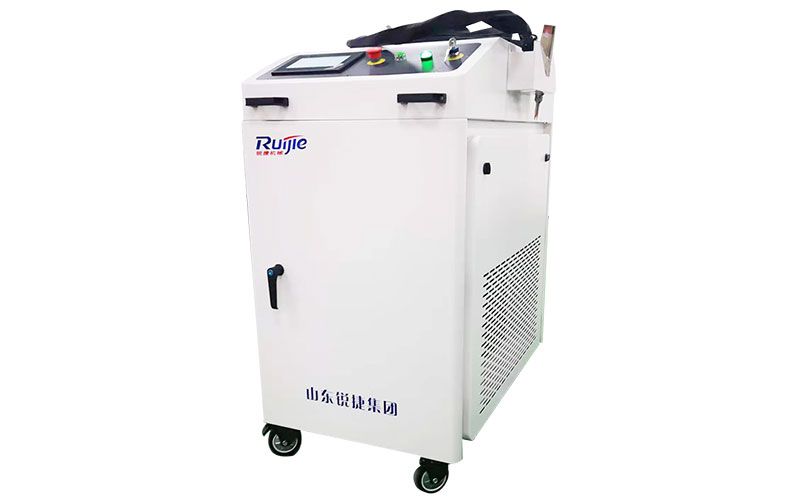

Handheld Laser Welding Machine
Play Video
Specifications
| Focal length | 100mm/125mm |
| Max. laser power | 1000W, 1500W, 2000W |
| Nozzle aperture | 6mm |
| Auxiliary air pressure | ＜1.0Mpa |
| Connector type | QBH |
| Laser source | Raycus, IPG, etc. |
| Laser wavelength | 1070nm |
| Fiber length | Standard 8-10m, up to 15m |
| Working mode | Continuous / Modulation |
| Welding speed | 0~120 mm/s |
| Collimating lens | 50mm |
| Cooling water | Industrial thermostatic water tank |
Features
-
-

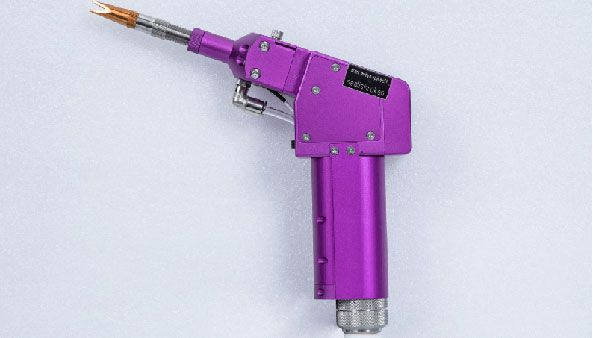

Double wobble welding head
- Multiple spot modes, easy to switch
- Built-in dual-axis high-speed servo motor
- Digital display, welding parameters control in real time
- Circulating water for quick cooling of welding gun body
- Imported chips provide high-level protection, ensuring operation safety
- All ports can resist static electricity of 20W
-
-

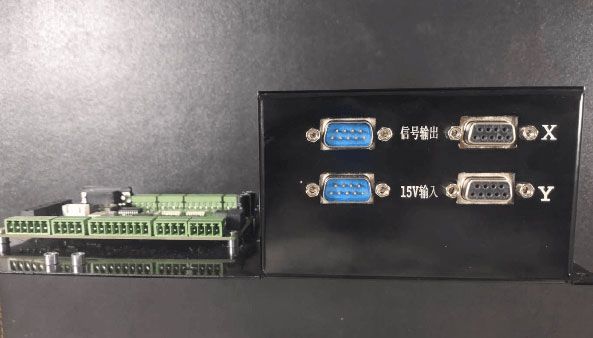

Control card
The control card supports lasers of most international brands. It has DIP switch allowing for changing to a 5V laser control signal, which is suitable for new type IPG laser. It is designed with several protection measures to avoid safety hazards caused by misoperation, incorrect wiring or current interference.
-
-

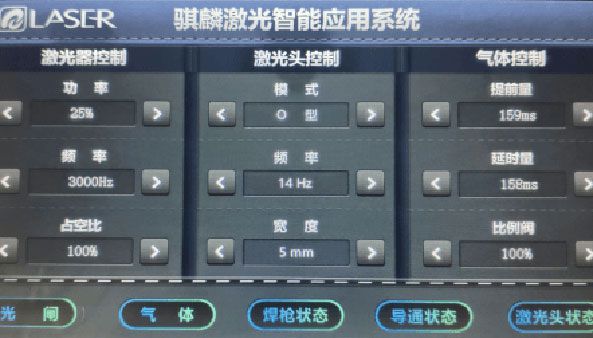

Laser control
- Power: adjustable power rate
- Frequency: 50-30000Hz
- Duty cycle: adjustable percentage
-
-
Laser head control
- Mode: 6 spot modes are optional
- Frequency: 2-46Hz (one Hertz corresponds to motor swing 10 times per second)
- Width: 0-5mm (adjustable light spot)
