ATC CNC Router with Linear Automatic Tool Changer

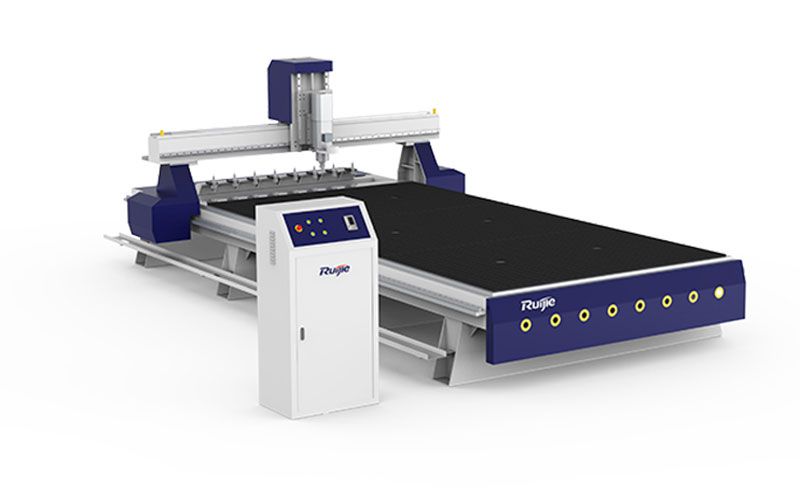

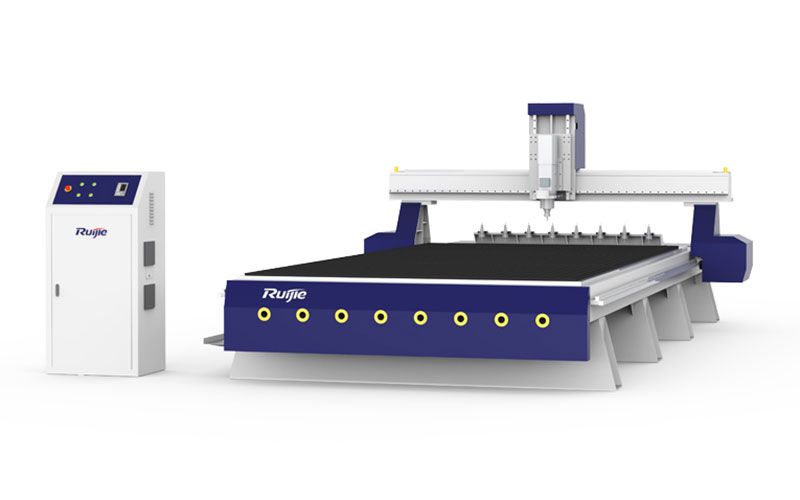

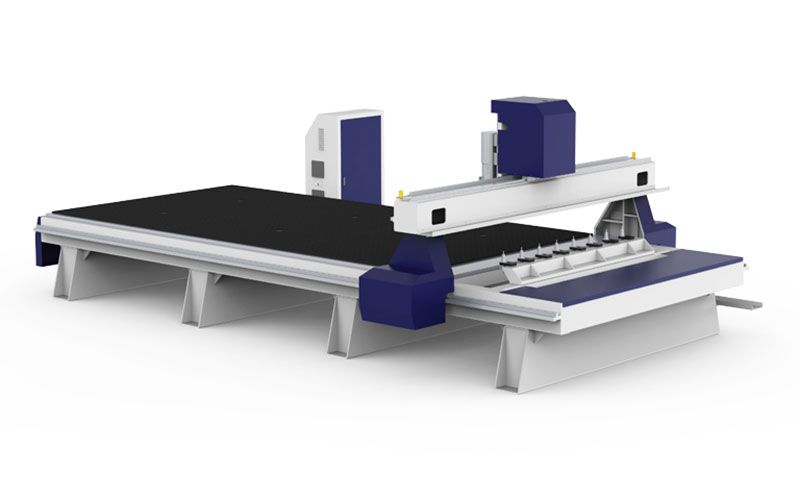

ATC CNC router is a CNC machine with a linear automatic tool changer for woodworking, molding making, stone carving and metal fabrication. The ATC CNC router has a linear tool magazine of multiple tools which are automatically changed, greatly saving processing time and labor intensity. During a tool change cycle, the spindle enables the tool holder to move toward the tool magazine and select the tool according to the working requirements. The ATC CNC router is ideal CNC engraving machine for satisfying customer needs of medium or large-scale processing applications.
| Model | | | | |
| Working area (mm) | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x4000mm |
| Z-axis travel height | 300mm | |||
| Max. engraving speed | 25000mm/min | |||
| Max. traveling speed | 60000mm/min | |||
| Working accuracy | ±0.10/300mm | |||
| Spindle power | Domestic ATC spindle (HSD 9kW spindle optional) | |||
| Spindle speed | 6000—24000rpm | |||
| Control system | Richauto DSP/ Taiwan Syntec | |||
| Drive system | Imported servo motor system | |||
| Tool diameter | Ø3.175mm, Ø6mm, Ø12.7mm | |||
| X/Y/Z guide rails | Linear guide rails | |||
| Transmission | 6-level precision helical gearing, X/Y axis ball screw, Z axis ball screw | |||
| Voltage | AC380V/50HZ | |||
| Command code | HPGL, G Code | |||
| Dust collector | 3kW | |||
| Vacuum power | 5.5kW/7.5kW | |||
-
-
DSP control system

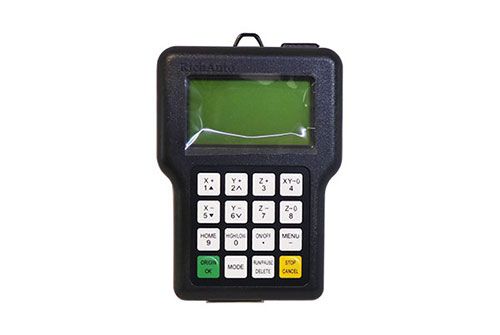

DSP hand controller makes operation easier and more simple. It uses handle to manually control the motion of CNC router, eliminating the need for an additional computer thereby decreasing the required footprint.
-
-
Powerful ATC spindle

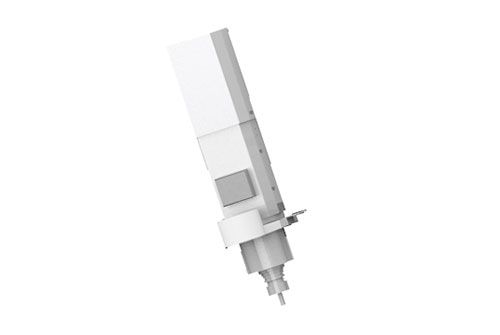

5.5kW high power water cooled ATC spindle with is used as standard. Italian HSD 9.0kW air cooled spindle is optional.
-
-
Linear guide rail

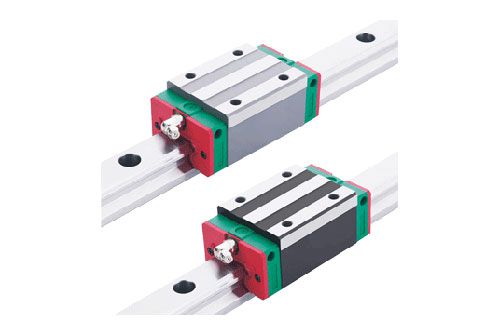

Square linear guides from world's renowned brand are used to ensure high precision, large loading capacity and long service life.
-
-
Servo motor

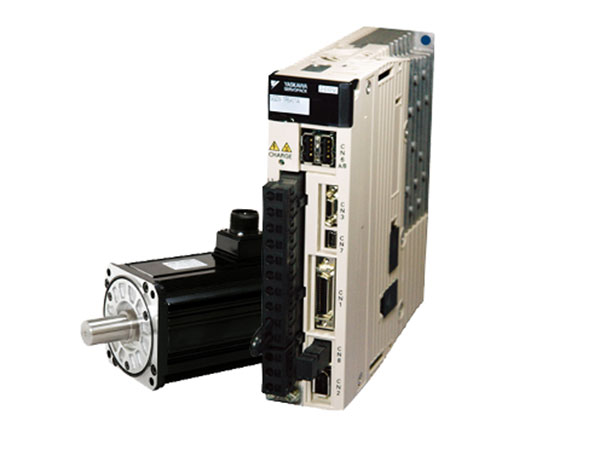

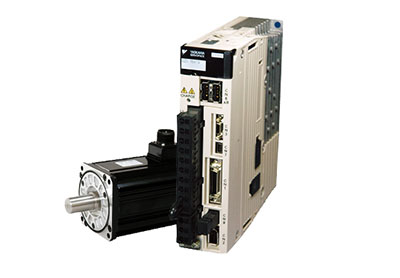

Japanese Yaskawa servo motor delivers fast running speed, low noise level and high position accuracy.
-
-
Rack and pinion transmission

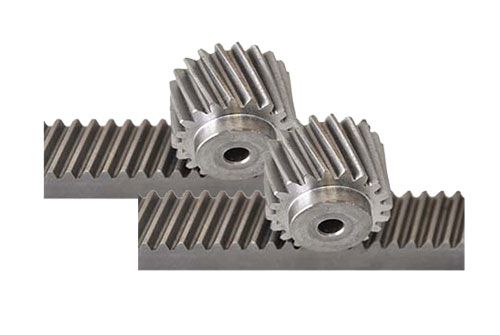

The rack and pinion transmission guarantees high speed and high precision.
-
-
Auto tool changer

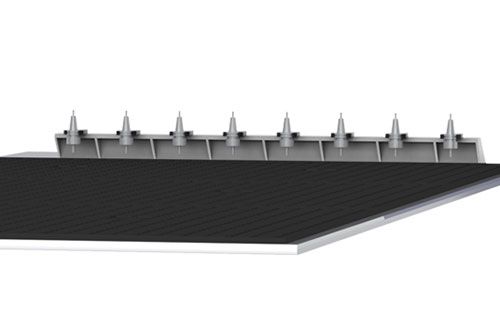

The exclusive automatic tool changer enables user to change tools alternatively. The tool sensor can compensate the tolerance of the tool length.
The standard tool magazine comes with 8 tools capacity (more than 8 tool capacity can be custom configured), it only takes 8 seconds to change tools.
-
-
T-slot and vacuum table

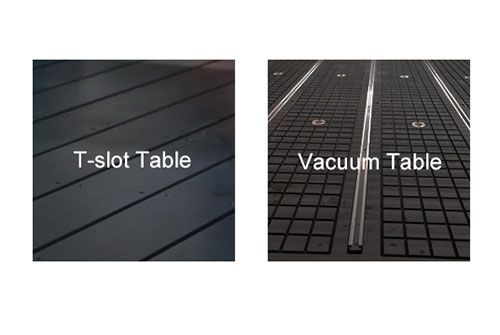

The vacuum bed is built using world's advanced technology and configured with powerful vacuum pump, stably accommodating various workpieces of different sizes.
Furniture:
cabinet doors, wood doors, wood partitions, windows, computer tables, mahjong tables, arcade cabinets, panel furniture;Advertising:
advertising signs, acrylic panels, 3D characters, composite advertising boards, decorative products;Mold making:
metal molds (such as brass, aluminum and iron) and non-metal molds (such as artificial marble, gravel, plastic panel, PVC pipes and wood); Others: suited to engrave various patterns and relief sculptures, typically used in the arts and crafts industry;
