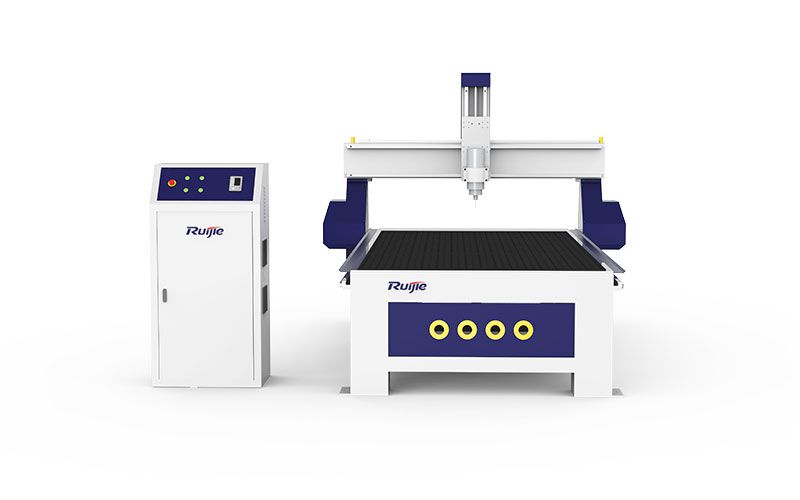

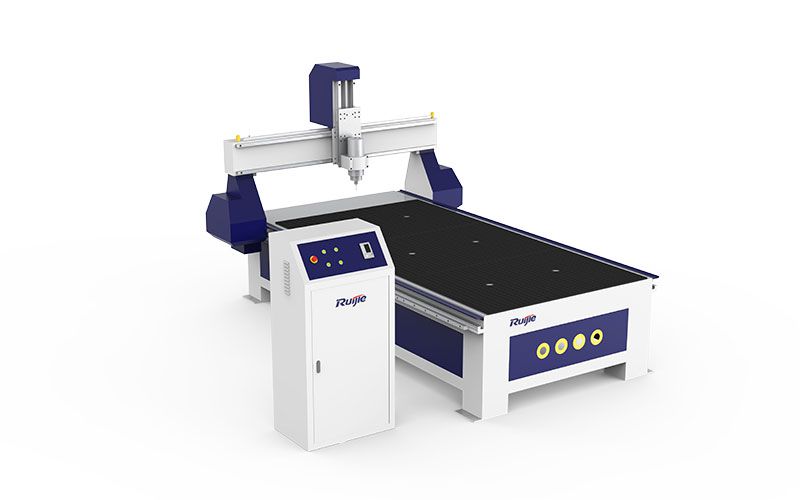

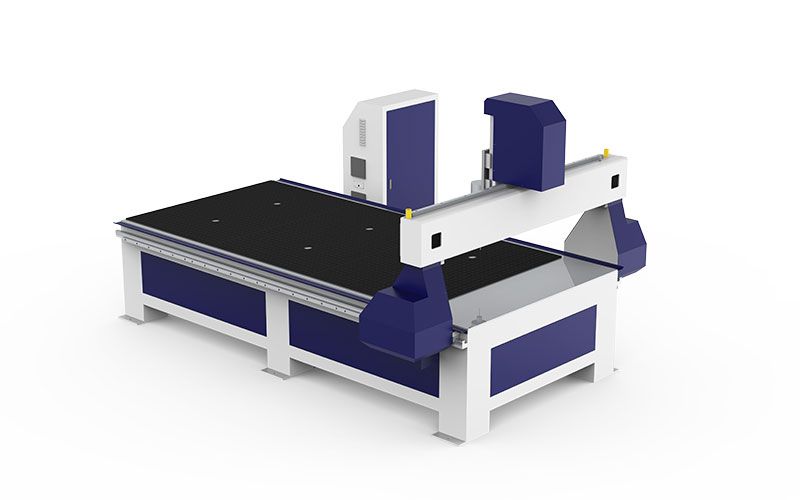

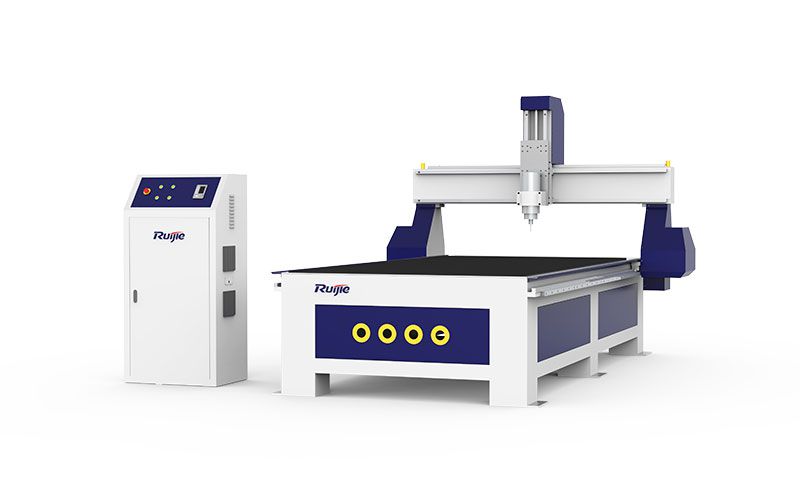

CNC Router with Vacuum Table
This CNC router is designed with a vacuum table that adopts world's advanced vacuum system. The vacuum pump offers strong absorption force to absorb materials of different sizes firmly. T slots are also supplied for mechanical clamping, so that operator can use either vacuum clamping or T-slot clamping according to the actual needs.

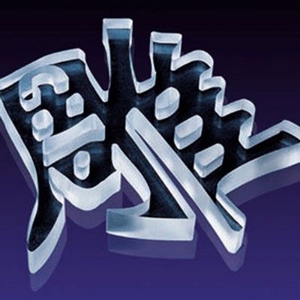

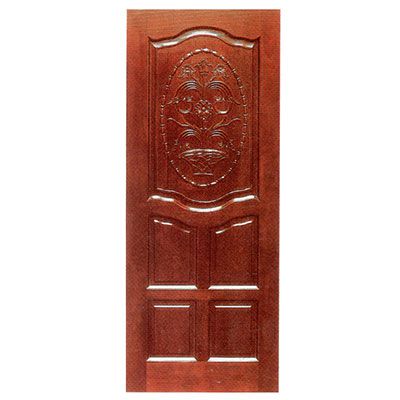

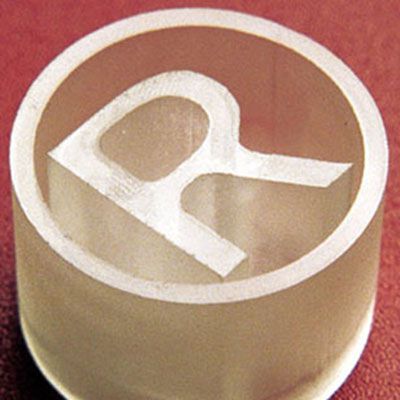

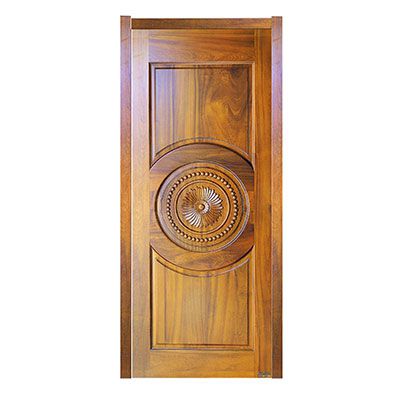

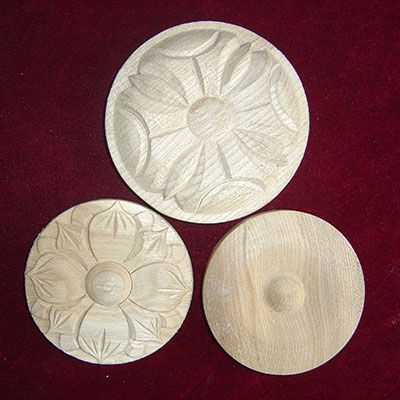

This CNC router is widely used for producing advertising signs, acrylic letters, wood doors, etc. It is applicable to a number of materials, such as steel, brass, aluminum, plastic, acrylic, wood, and other metal or non-metal materials.
| Model | | | | | |
| Working area (mm) | 1200x1200mm | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x4000mm |
| Z-axis travel height | 180mm/230mm/330mm | ||||
| Max. engraving speed | 20000mm/min | ||||
| Working accuracy | ±0.08/300mm | ||||
| Spindle power | 3KW/5.5KW/6KW/7.5KW/9KW | ||||
| Spindle speed | 6000—24000rpm | ||||
| Tool diameter | Ø3.175mm, Ø6mm, Ø12.7mm | ||||
| X/Y/Z guide rails | Linear guide rails | ||||
| Transmission | X/Y axis rack and pinion, Z axis ball screw | ||||
| Voltage | AC380V/50HZ | ||||
| Command code | HPGL,G Code | ||||
| Dust collector | 3kW | ||||
| Vacuum power | 5.5kW/7.5kW | ||||
-
-
DSP control system
DSP hand controller makes operation easier and more simple. It uses handle to manually control the motion of CNC router, eliminating the need for an additional computer thereby decreasing the required footprint.
-
-

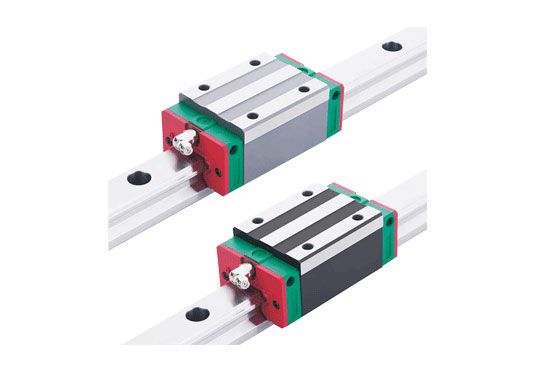

Linear guide rail
Square linear guides from world's renowned brand are used to ensure high precision, large loading capacity and long service life.
-
-

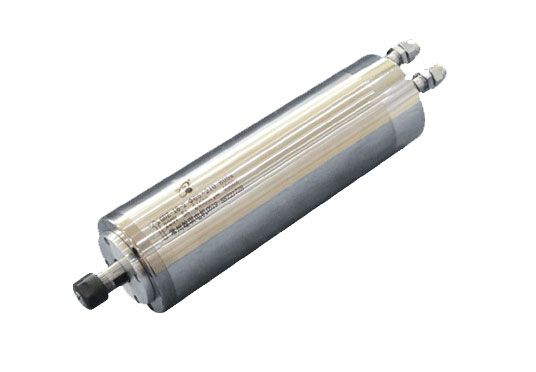

Powerful spindle
High power brushless water-cooled spindle ensures reliable operation with less noise, allowing operator to perform batch processing for a long time.
-
-

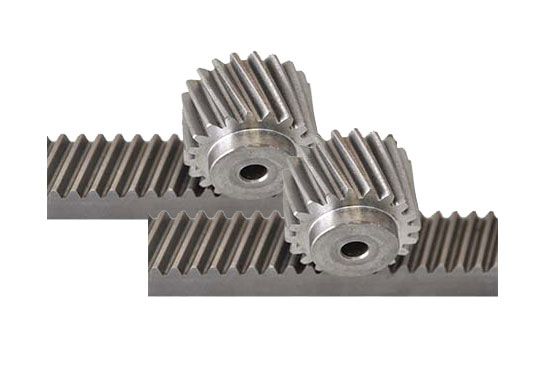

Rack and pinion transmission
The rack and pinion transmission guarantees high speed and high precision.
-
-

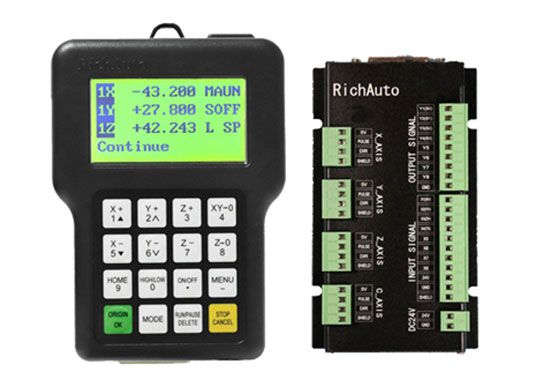

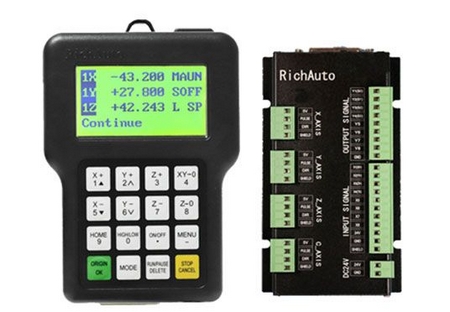

Richauto DSP
DSP control plays a vital role in the operation of CNC router. Richauto DSP control can achieve fast computing speed and strong processing capacity.
16-key keyboard, simple to use;
Multi-language display, easy to change languages;
-
-

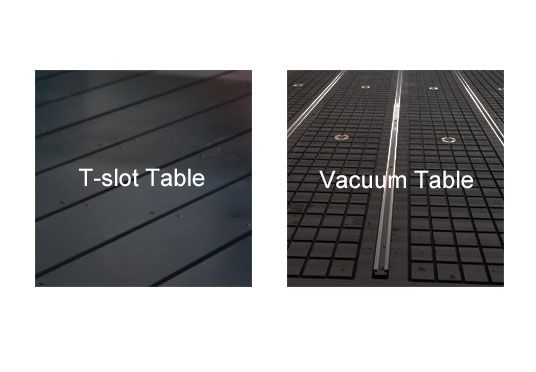

T-slot and vacuum table
The vacuum bed is built using world's advanced technology and configured with powerful vacuum pump, stably accommodating various workpieces of different sizes.
