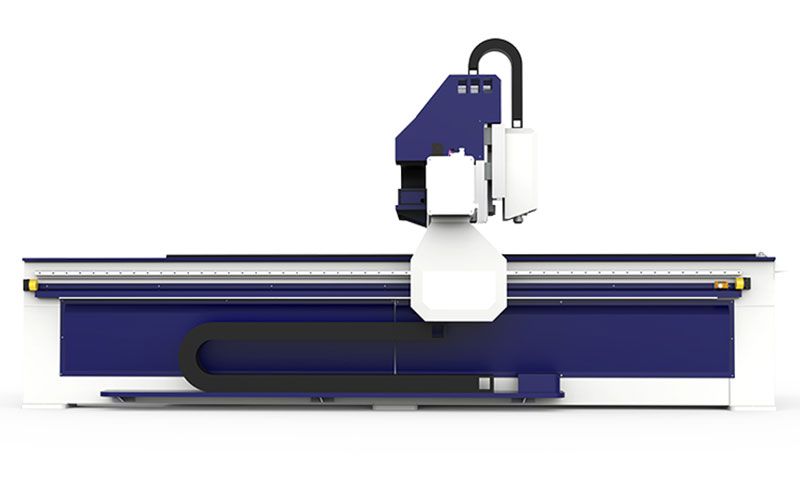

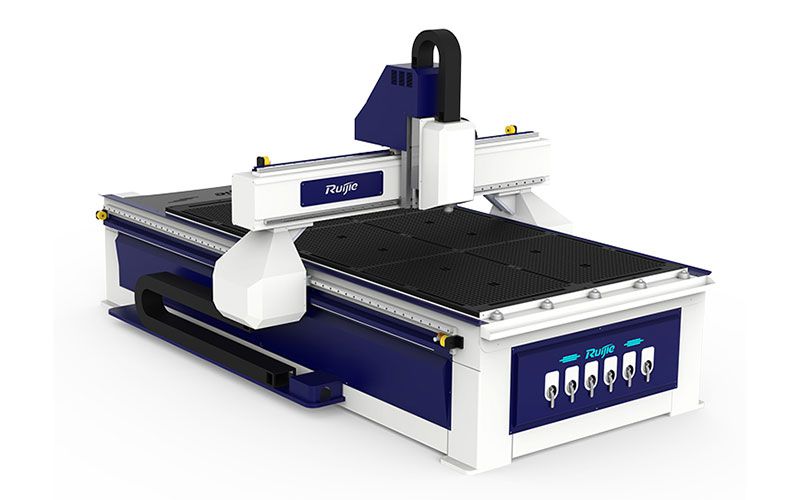

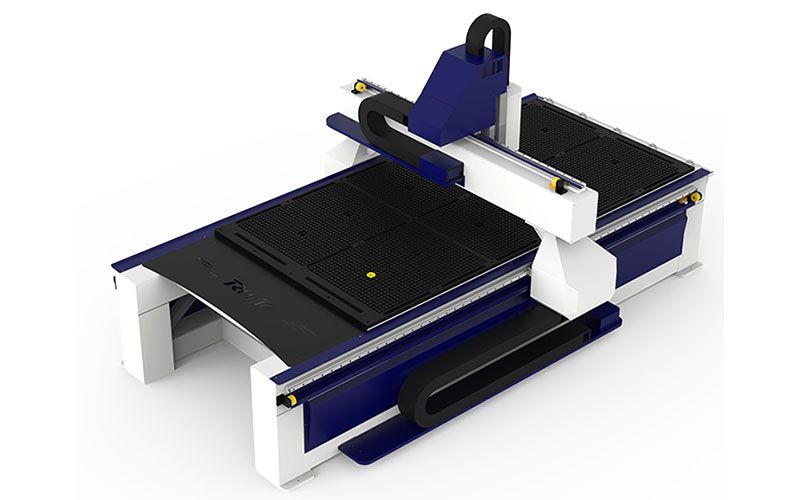

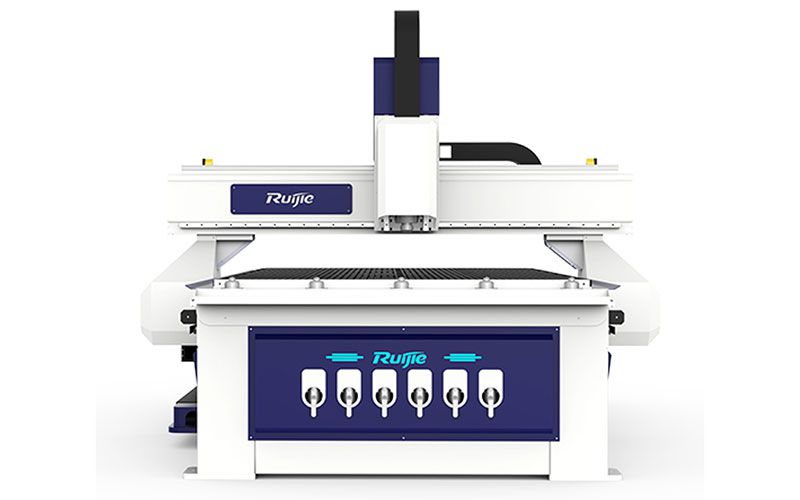

Acrylic CNC Router
Our acrylic CNC router is suitable for cutting acrylic letters for signs. The machine body is built with a steel pipe welded structure and subjected to stabilization treatment process, ensuring high strength and minimum distortion. This acrylic CNC router is also applicable for pattern engraving, small model rough processing or fine processing.
The acrylic CNC router is mainly used for cutting acrylic letters and panels.
| Model | |
| Working area (mm) | 1300x2500mm |
| Z-axis travel height | 180mm |
| X/Y-axis travel speed | 3000mm/ min |
| Z-axis travel speed | 2000mm/min |
| Working accuracy | ±0.05/300mm |
| Spindle power | 5.5kW |
| Spindle speed | 6000—24000rpm |
| Tool diameter | Ø3.175mm, Ø6mm, Ø12.7mm |
| X/Y/Z guide rails | Linear guide rails |
| Transmission | Rack Gear of X.Y axis, Ball Screw of Z axis |
| Voltage | AC380V/50HZ |
| Dust collector | 3kW |
| Vacuum power | 5.5kW |
| File format | DST, PLT, BMP, DXF, AI, DWG |
| Command code | G code |
| Control system | NC-Studio /NK105 DSP |
| Drive system | Invt servo /Leadshine 758 |
-
-

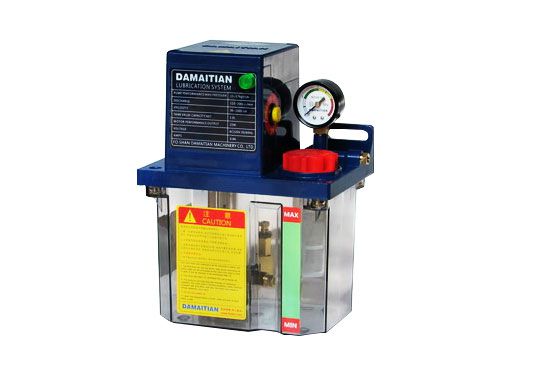

Automatic lubrication system
The automatic lubrication system performs regular lubrication and maintenance by simply pressing a button.
-
-

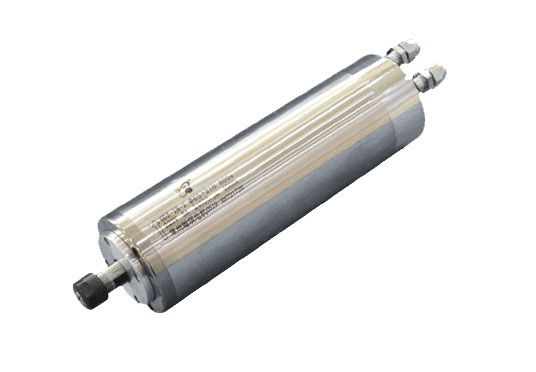

Powerful spindle
High power brushless water-cooled spindle ensures reliable operation with less noise, allowing operator to perform batch processing for a long time.
-
-

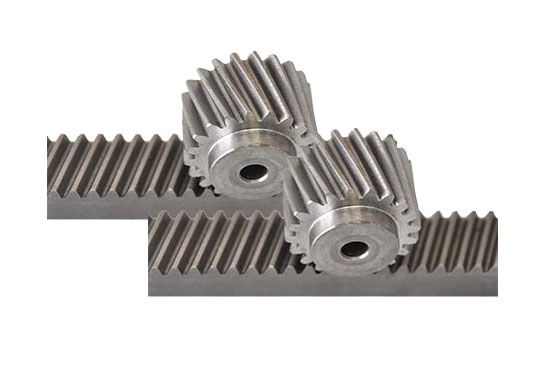

Rack and pinion transmission
The rack and pinion transmission guarantees high speed and high precision.
-
-

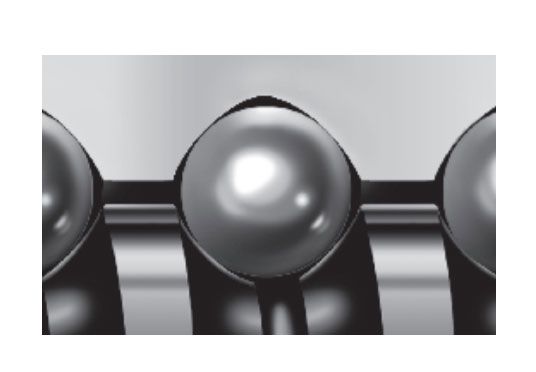

TBI ball screw
High precision TBI ball screw transmission provides high speed and stable operation.
-
-

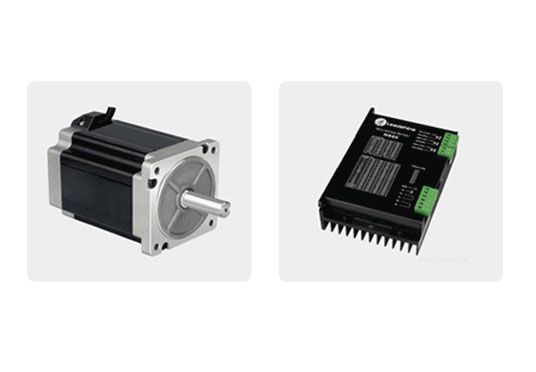

Stepper motor
Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy. With no adjustments needed, the drive system makes sure the CO2 laser machine is performing at its peak efficiency with less maintenance.
-
-

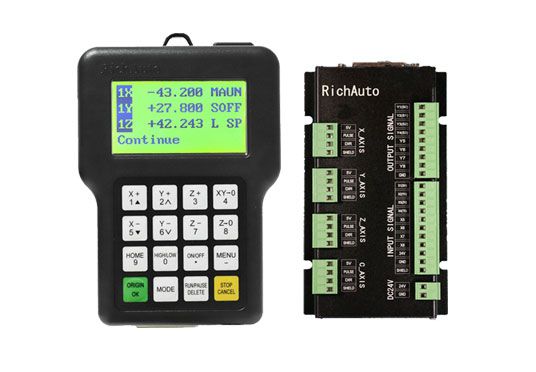

Richauto DSP
DSP control plays a vital role in the operation of CNC router. Richauto DSP control can achieve fast computing speed and strong processing capacity. 16-key keyboard, simple to use; Multi-language display, easy to change languages;
