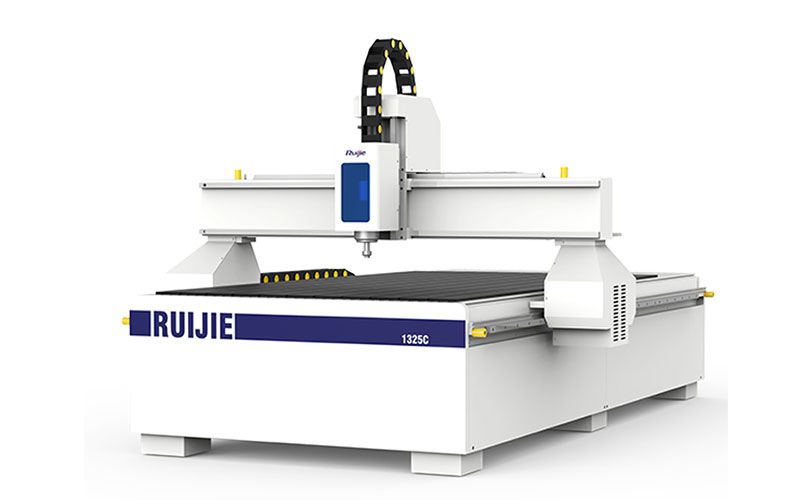

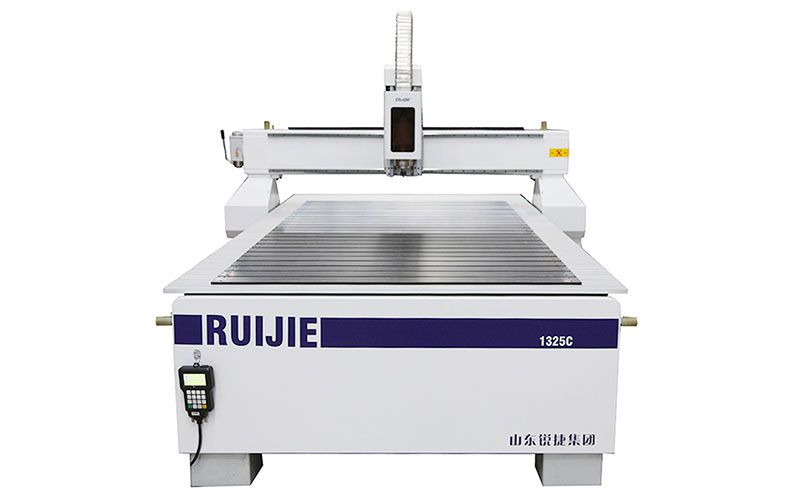

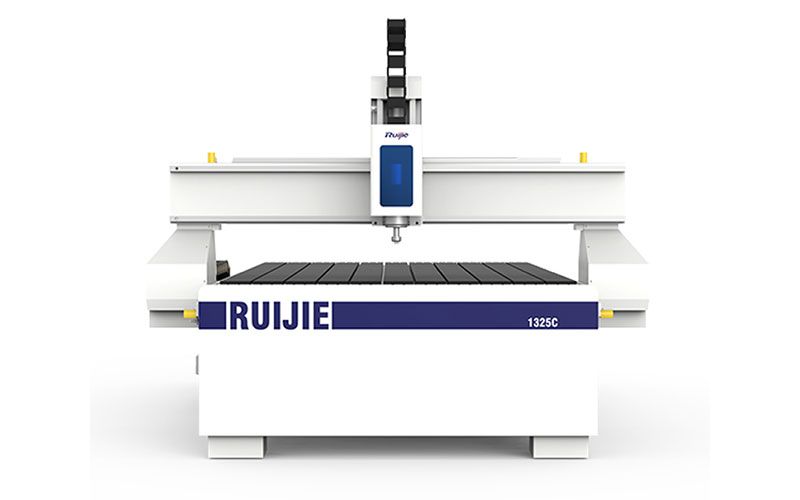

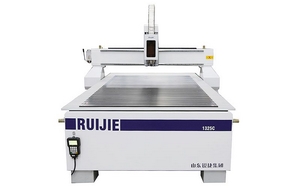

Multi-function CNC Router
This CNC router is a CNC engraving machine developed for various industrial sectors such as advertising, furniture, crafts, etc. The CNC router has two motors on the Y axis to achieve smooth and stable machine movement. Optimization design of mechanical and electrical components which are purchased from reliable brands helps minimize the failure rate.

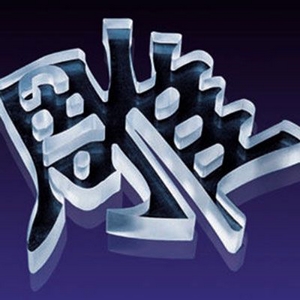

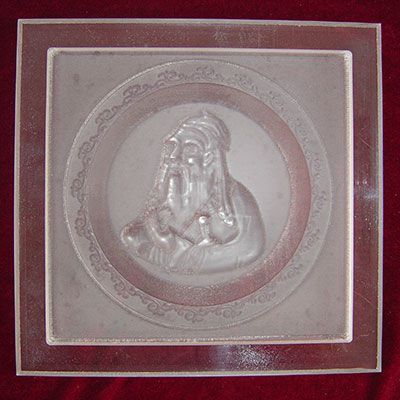

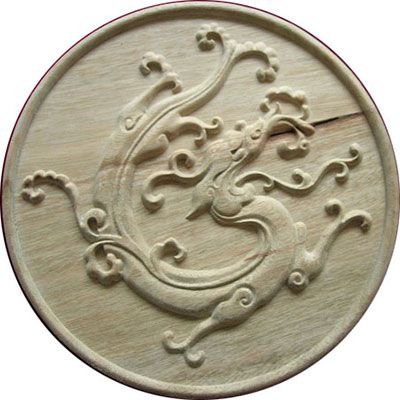

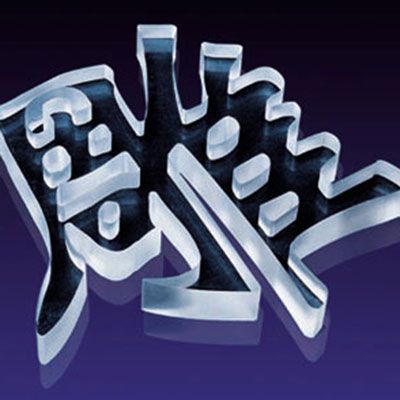

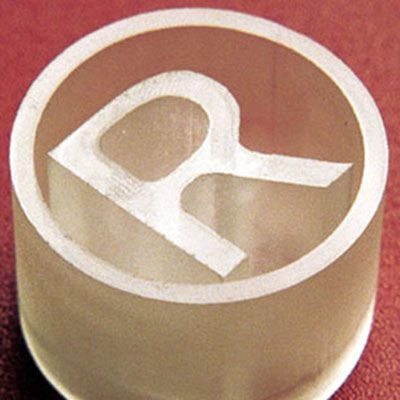

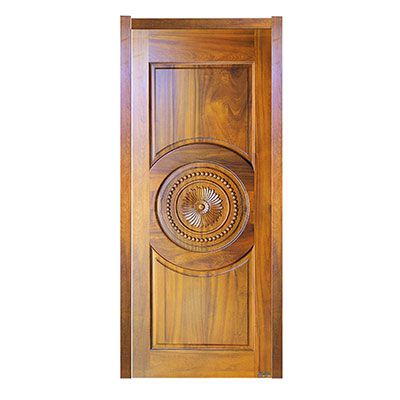

Our multi-function CNC router is widely used for producing advertising signs, acrylic letters, wood doors, etc. It is applicable to a number of materials, such as steel, brass, aluminum, plastic, acrylic, wood, and other metal or non-metal materials.
| Model | | | | | |
| Working area (mm) | 1200x1200mm | 1300x2500mm | 1500x3000mm | 2000x3000mm | 2000x4000mm |
| Max. engraving speed | 12000mm/min | ||||
| Working accuracy | ±0.08/300mm | ||||
| Spindle power | 3kW | ||||
| Spindle speed | 6000—24000rpm | ||||
| Tool diameter | Ø3.175mm, Ø6mm, Ø12.7mm | ||||
| X/Y/Z guide rails | Linear guide rails | ||||
| Transmission | X/Y axis rack and pinion, Z axis ball screw | ||||
| Voltage | AC220V/50HZ | ||||
| Command code | HPGL, G Code | ||||
-
-
Stepper motor
Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy. With no adjustments needed, the drive system makes sure the CO2 laser machine is performing at its peak efficiency with less maintenance.
-
-

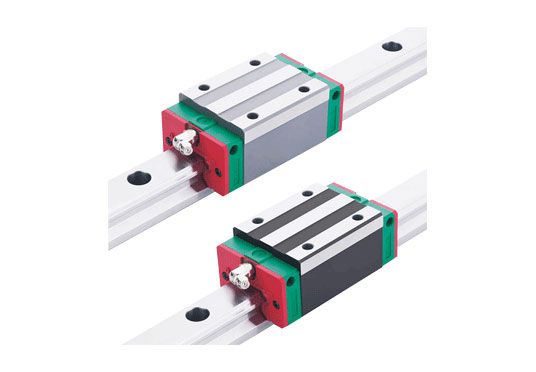

Linear guide rail
Square linear guides from world's renowned brand are used to ensure high precision, large loading capacity and long service life.
-
-

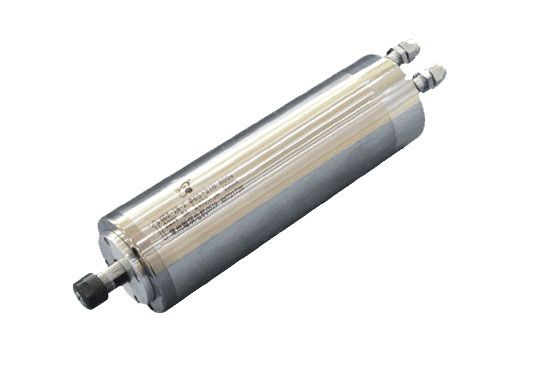

Powerful spindle
High power brushless water-cooled spindle ensures reliable operation with less noise, allowing operator to perform batch processing for a long time.
-
-

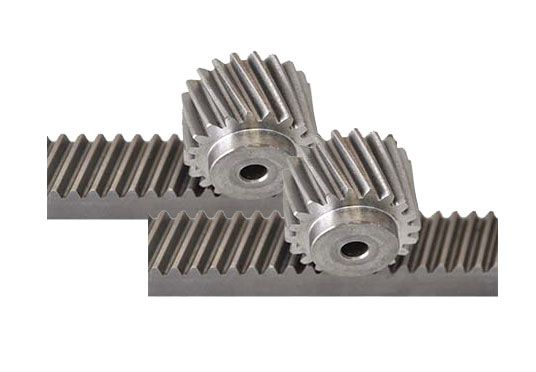

Rack and pinion transmission
The rack and pinion transmission guarantees high speed and high precision.
-
-

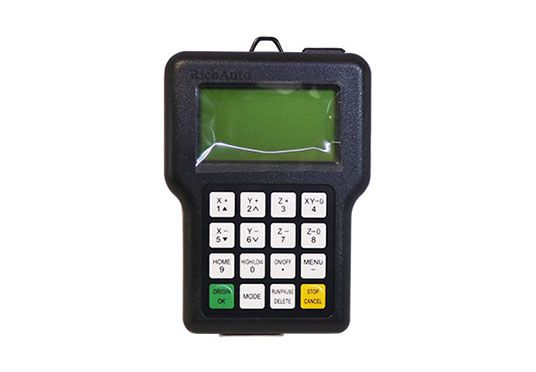

Richauto DSP
DSP control plays a vital role in the operation of CNC router. Richauto DSP control can achieve fast computing speed and strong processing capacity. 16-key keyboard, simple to use;
Multi-language display, easy to change languages;
-
-

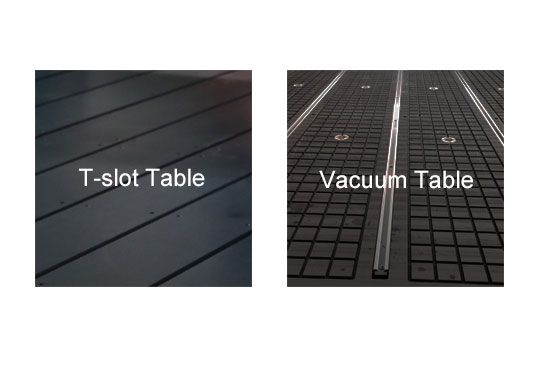

T-slot and vacuum table
The T-slot table can be configured with optional vacuum absorption system.
