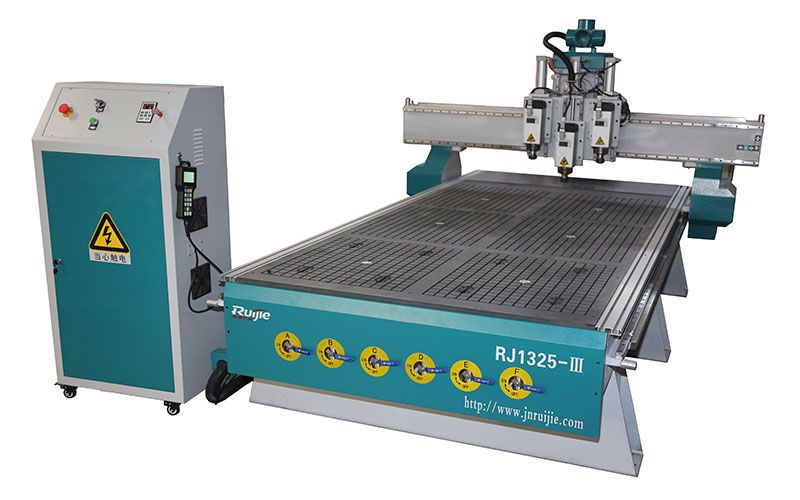

Multi-spindle CNC Router
Multi-spindle CNC router was designed in response to the customer need of CNC wood engraving machine with less processing time. When a workpiece needs to be carved by using two or more tools to create different patterns, this CNC woodworking router can be a perfect solution that assists operator in shortening the time of tool setting.

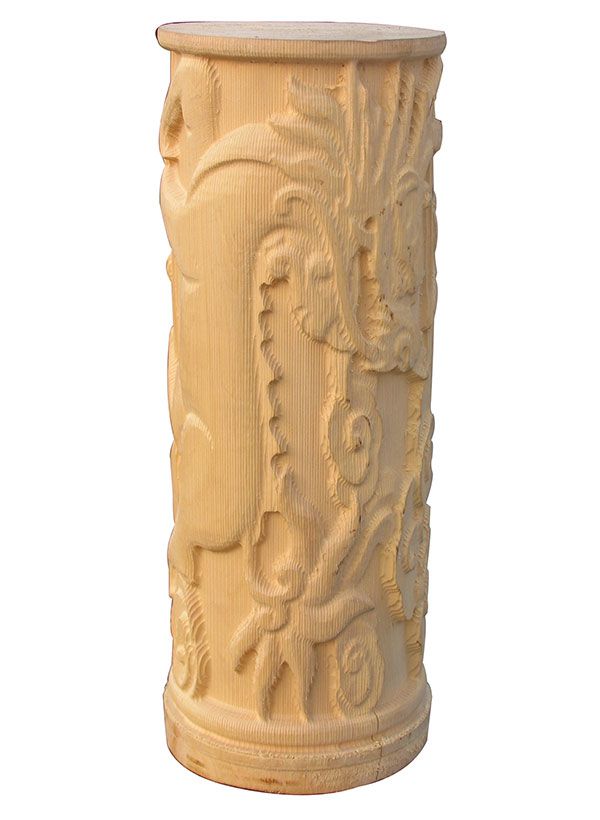

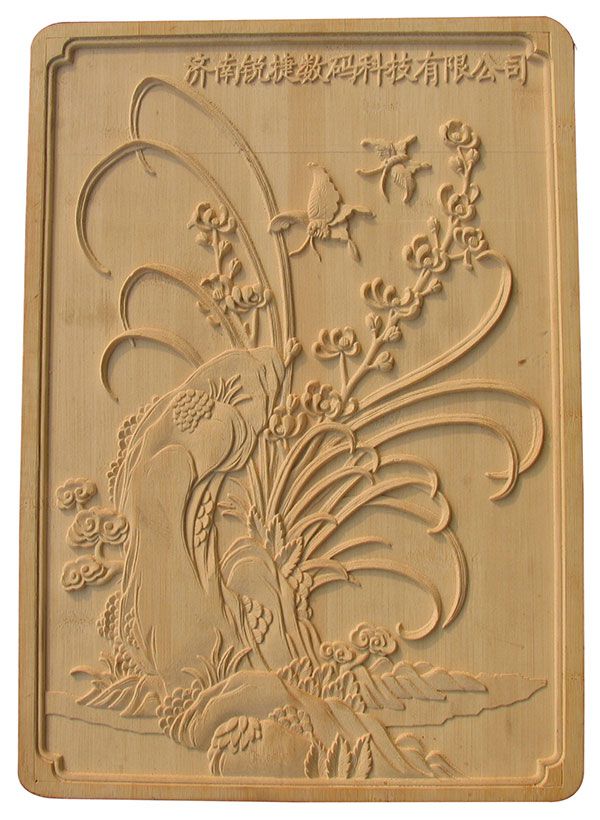

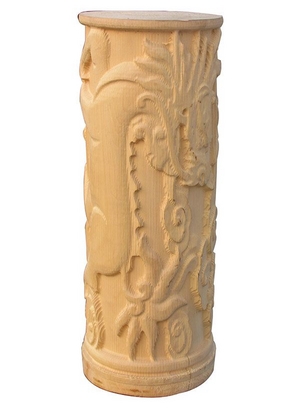

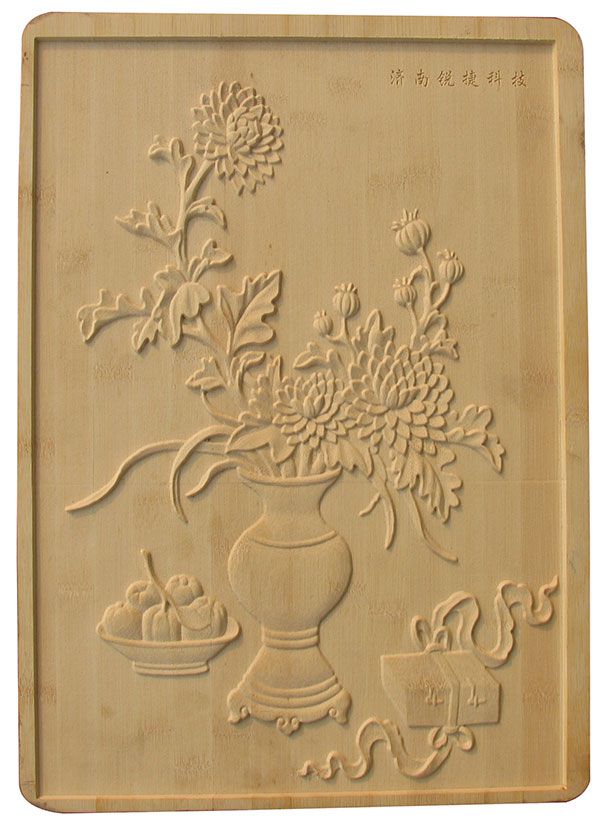

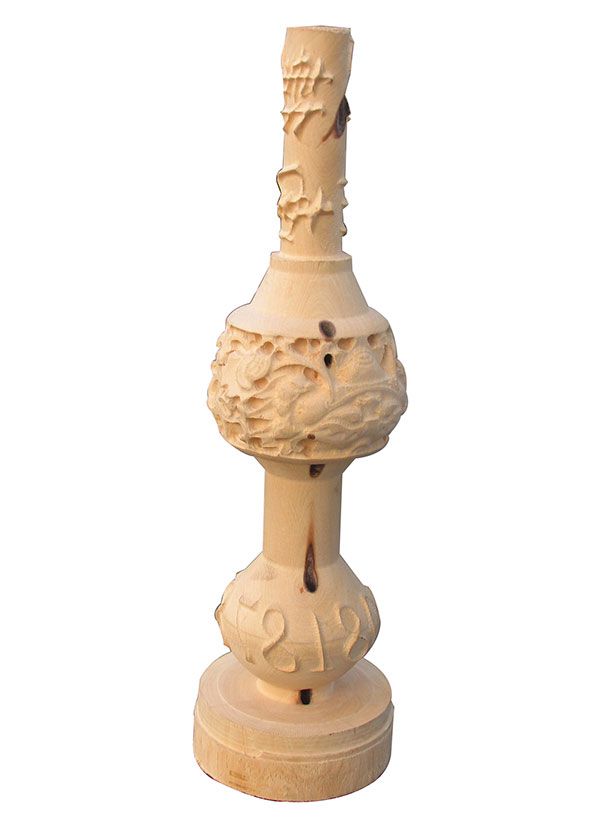

Our multi-spindle CNC routers are available in several models, i.e. split type CNC router (2-6 heads), cylindrical workpiece CNC router (2-3 heads), board CNC router (2-6 heads). All these CNC machines are suitable for working on small solid wood workpieces, ensuring high processing accuracy.
| Model | | |
| Working area (mm) | 1300x2500mm | 1300x2500mm |
| Z-axis travel height | 180mm/230mm | |
| Number of spindles | 2-6 pcs | |
| Max. engraving speed | 20000mm/min | |
| Working accuracy | ±0.08/300mm | |
| Spindle power | 2.2kW/3kW | |
| Spindle speed | 6000—24000rpm | |
| Tool diameter | Ø3.175mm, Ø6mm, Ø12.7mm | |
| X/Y/Z guide rails | Linear guide rails | |
| Transmission | X/Y axis rack and pinion, Z axis ball screw | |
| Voltage | AC380V/50HZ | |
| Command code | HPGL, G Code | |
-
-

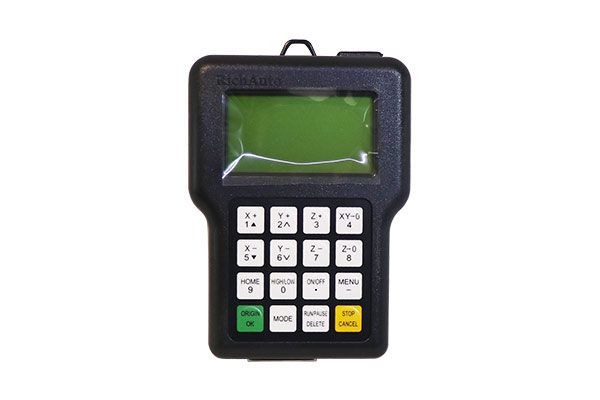

DSP control system
DSP hand controller makes operation easier and more simple. It uses handle to manually control the motion of CNC router, eliminating the need for an additional computer thereby decreasing the required footprint.
-
-

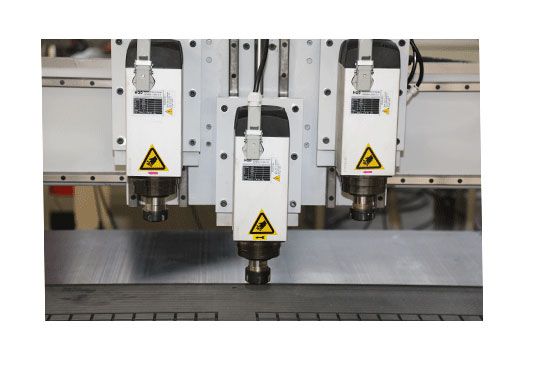

Pneumatic three heads
When a workpiece needs to be carved by using two or more tools to create different patterns, this CNC woodworking router can be a perfect solution that assists operator in shortening the time of tool setting.
-
-

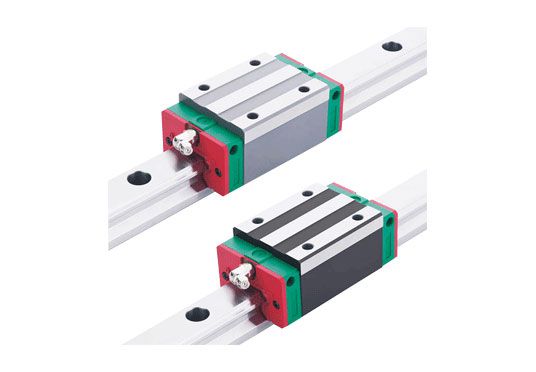

Linear guide rail
Square linear guides from world's renowned brand are used to ensure high precision, large loading capacity and long service life.
-
-

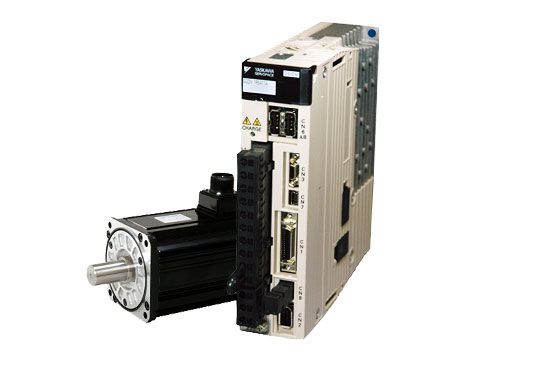

Servo motor
Japanese Yaskawa servo motor delivers fast running speed, low noise level and high position accuracy.
-
-

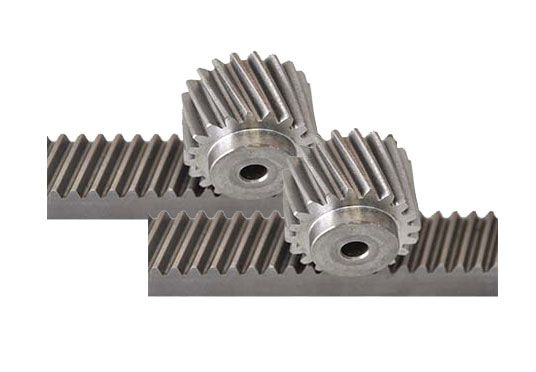

Rack and pinion transmission
The rack and pinion transmission guarantees high speed and high precision.
-
-

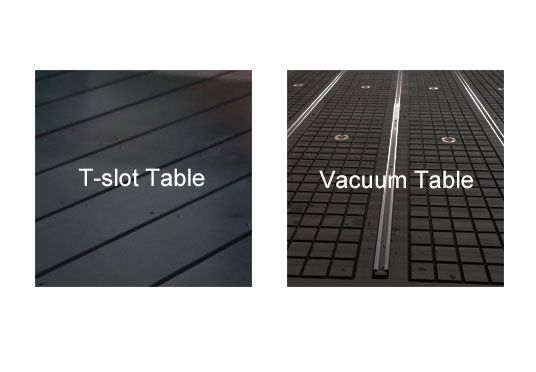

T-slot and vacuum table
The vacuum bed is built using world's advanced technology and configured with powerful vacuum pump, stably accommodating various workpieces of different sizes.
