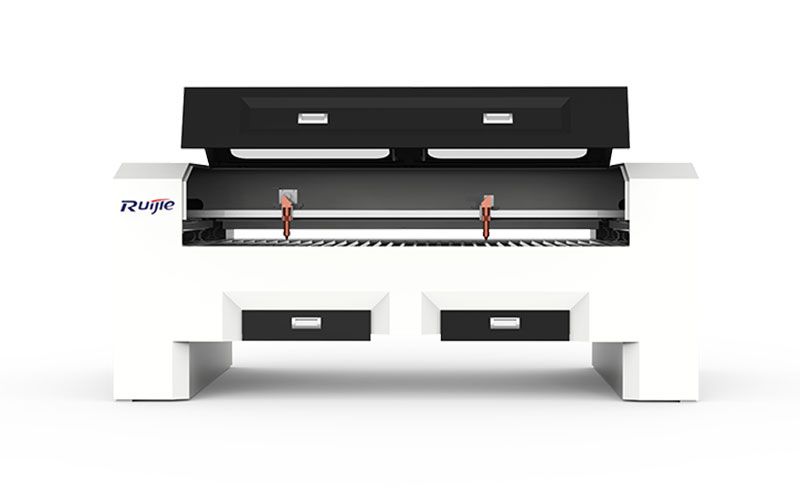

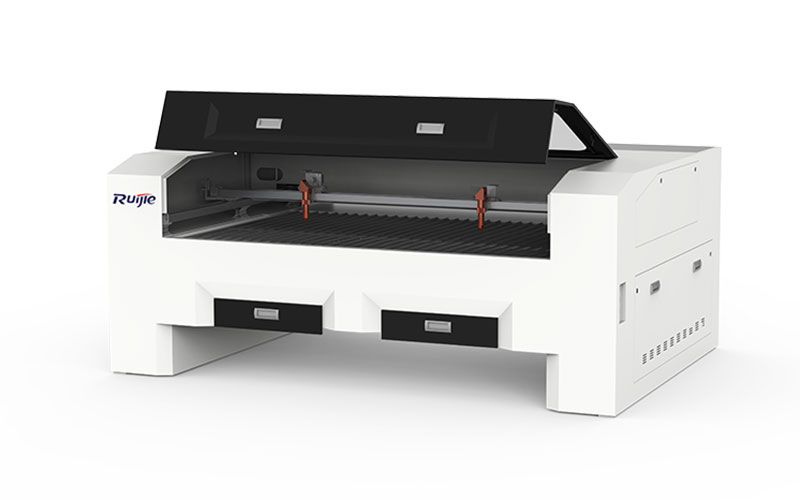

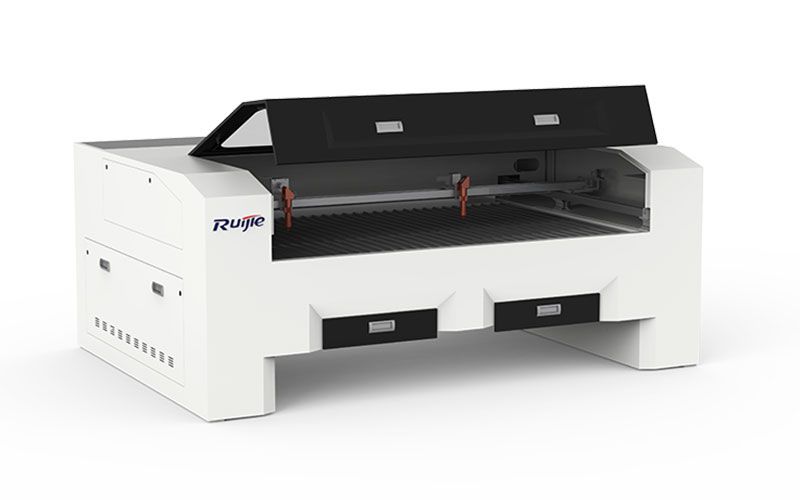

Dual-head CO2 Laser Cutting and Engraving Machine, RJ-1390
RJ-1390 CO2 laser machine has two laser cutting heads to cut or engrave a wide variety of materials like acrylic, wood, plywood, plastic, leather, etc. This CO2 laser cutting and engraving machine allows for either single head processing or double head processing, and it can also perform offline working with uniform cutting effect. The dual-head CO2 laser cutting and engraving machine will double your productivity and lower your manufacturing cost.
| Working area (optional) | 600×400mm 1000×600mm 1300×900mm 1500×900mm 1600×1200mm |
| Laser tube type | DC glass laser tube (CO2) |
| Laser wavelength | 10.6um |
| Laser power | 40W,60W,80W,130W,150W |
| Engraving speed | 0-1200 mm/s |
| Cutting speed | 0-600mm/s |
| Repositioning accuracy | ≤±0.01mm |
| Cooling system | Water cooling system |
| Control system | Digital offline control system |
| Drive system | Stepper motor |
| Minimum character size | Chinese: 1.5mm English: 1mm |
| Power supply | AC 220V/110V ±10% 50HZ/60HZ |
| File format | PLT,DST,DXF,DWG,AL,LAS |
| Software | Support AutoCAD, CorelDRAW output directly |
| Working environment | Temperature: 0-45°C Humidity: 5%-95% |
Crafts
souvenirs, gifts, wooden packaging boxes, bamboo crafts, wood planks, wood plaques, bamboo plaques
Signs
leather signs, embroidered signs, trademarks, appliques
Acrylic products
acrylic trophies, acrylic signs, acrylic models, acrylic crafts
Construction & decorative materials
marble headstones, glass sculptures, wall tiles, marble wall arts
Textiles
tablecloth, sofa, cushion, jeans, fabric
-
-

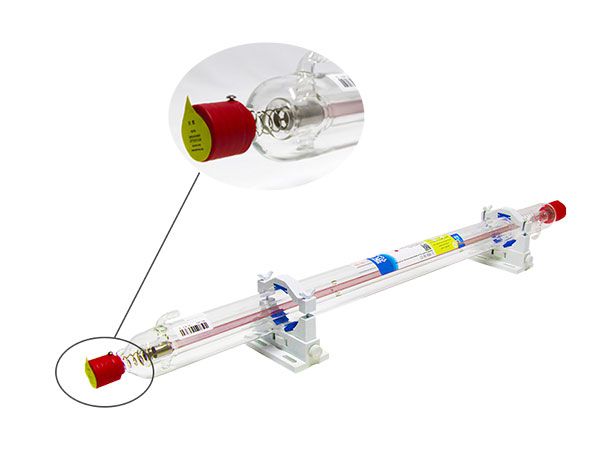

Laser tube
Yongli or RECI CO2 laser tube is adopted due to their mature technology and reliable quality, ensuring stable cutting speed and high cutting precision. The CO2 laser tubes are featured by long service life and low failure rate.
-
-

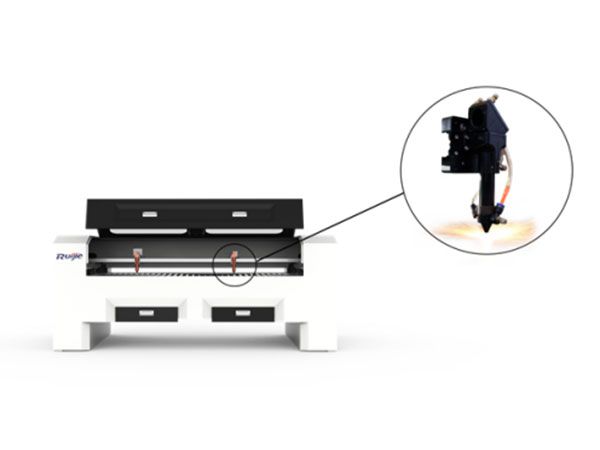

Laser head
Dual-head laser machine combines engraving and cutting functions, providing fast processing speed and high working efficiency while guaranteeing desired cutting precision.
-
-

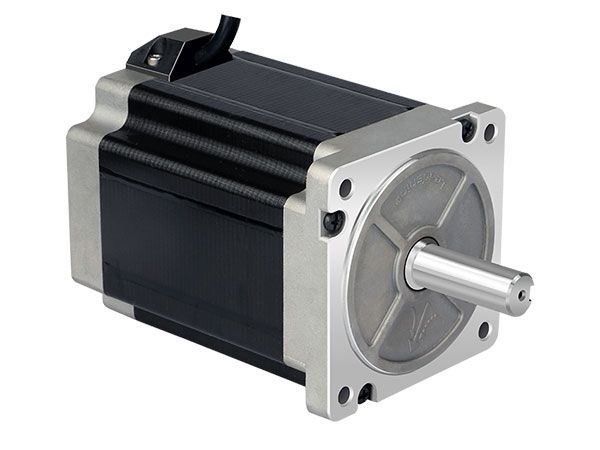

Stepper motor
Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy.
-
-

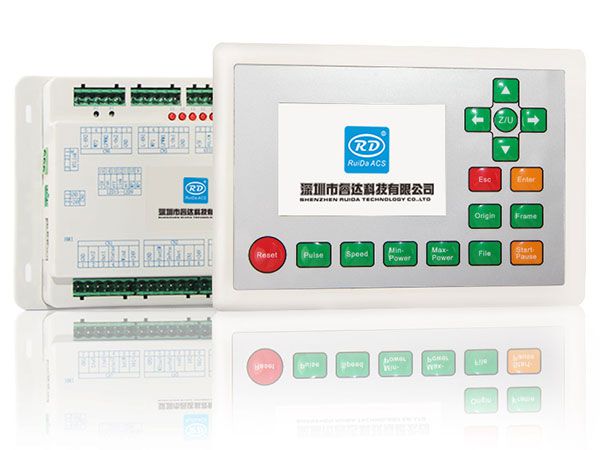

Control system
Digital offline control system has USB port, RD and Lettro alternative. The user-friendly interface makes operation easier.
-
-

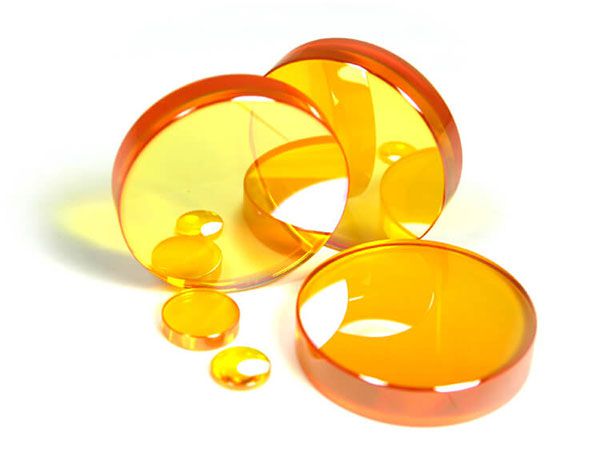

Optical components
US II-VI optical lens and ZNSE focus lens are used for high cutting efficiency.
-
-

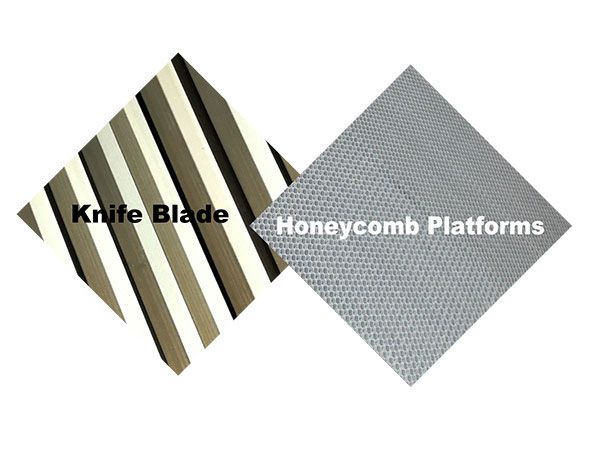

Dual worktable
Aluminum slat worktable ensures high cutting quality. Honeycomb worktable is selectable for cutting soft materials.
