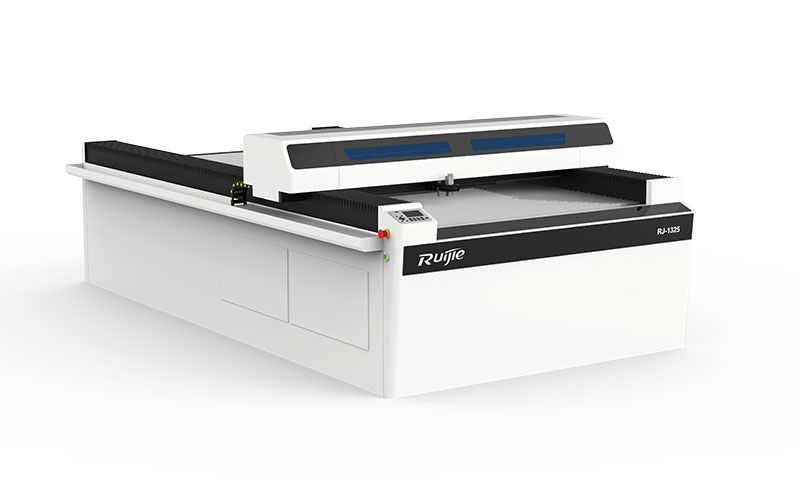

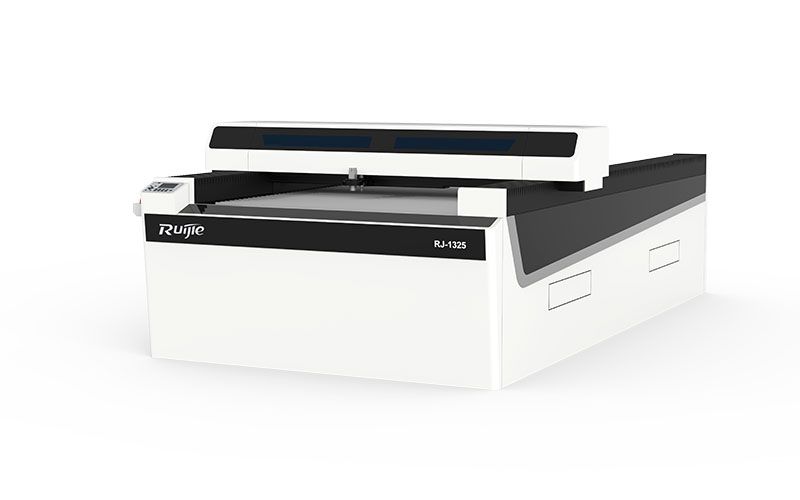

CO2 Laser Cutting and Engraving Machine with CCD Camera, RJ-1325
RJ-1325 CO2 laser machine is a high-speed high-precision laser cutting and engraving machine for processing a wide range of non-metal materials, including acrylic, wood, plywood, plastic, leather, cloth, textile, paper, and more. This CO2 laser cutting machine can be extensively used in advertising, sign making, model making, decoration, crafts, electronics, wooden products, etc.
| Working area | 1300mm×2500mm |
| Laser tube type | CO2 |
| Laser wavelength | 10.6um |
| Laser power | 60W,80W,130W,150W |
| Engraving speed | 0-1200 mm/s |
| Cutting speed | 0-600mm/s |
| Repositioning accuracy | ≤±0.01mm |
| Cooling system | Water cooling |
| Control system | Digital offline control system |
| File format | PLT,DST,DXF,DWG,AL,LAS |
| Software | Support AutoCAD, CorelDRAW output directly |
| Electric lifting worktable | Ball screw transmission, maximum lifting height of 260mm |
| Drive system | Stepper motor |
| Minimum character size | Chinese: 1.5mm English: 1mm |
| Power supply | AC 220V/110V ±10% 50HZ/60HZ |
| Machine power | ≤1500W |
| Working environment | Temperature: 0-45°C Humidity: 5%-95% |
Crafts
souvenirs, gifts, wooden packaging boxes, bamboo crafts, wood planks, wood plaques, bamboo plaques
Signs
leather signs, embroidered signs, trademarks, appliques
Acrylic products
acrylic trophies, acrylic signs, acrylic models, acrylic crafts
Construction & decorative materials
marble headstones, glass sculptures, wall tiles, marble wall arts
Textiles
tablecloth, sofa, cushion, jeans, fabric
-
-

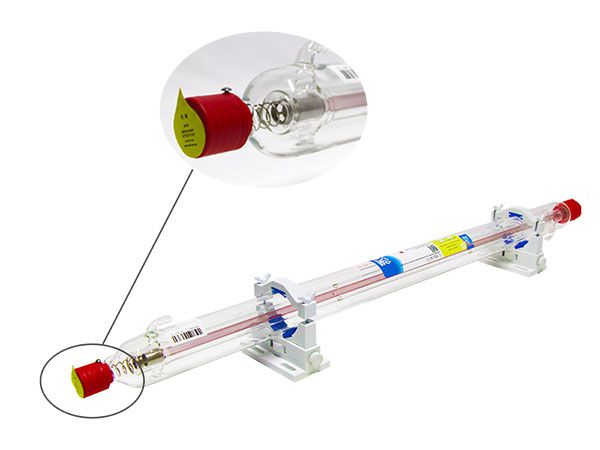

Laser tube
Yongli or RECI CO2 laser tube is adopted due to their mature technology and reliable quality, ensuring stable cutting speed and high cutting precision. The CO2 laser tubes are featured by long service life and low failure rate.
-
-

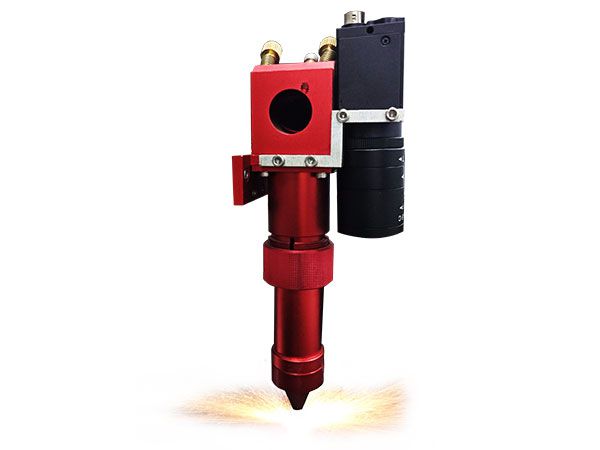

Laser head
Coupled with CCD camera system that helps exactly contouring the pattern, the laser head can achieve high cutting precision, and automatic focus adjustment to improve cutting speed and working efficiency.
-
-

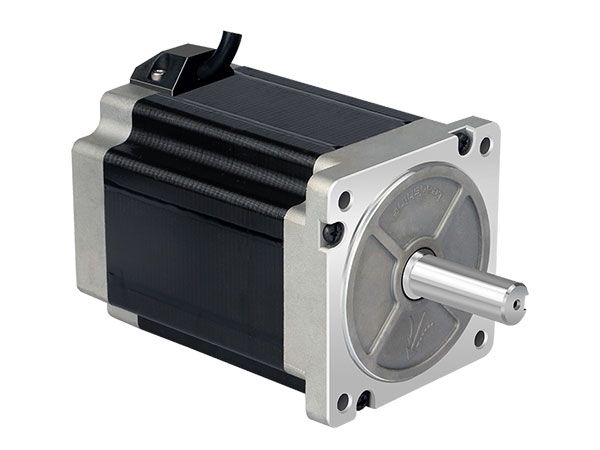

Stepper motor
Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy. With no adjustments needed, the drive system makes sure the CO2 laser machine is performing at its peak efficiency with less maintenance.
-
-

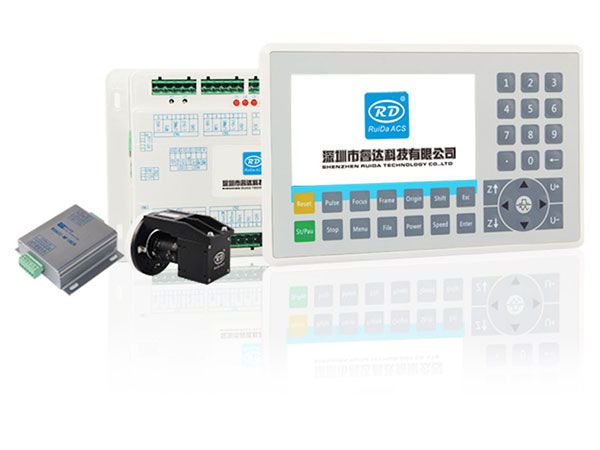

Control system
Digital offline control system has USB port, RD and Lettro alternative. The user-friendly interface makes operation easier.
-
-

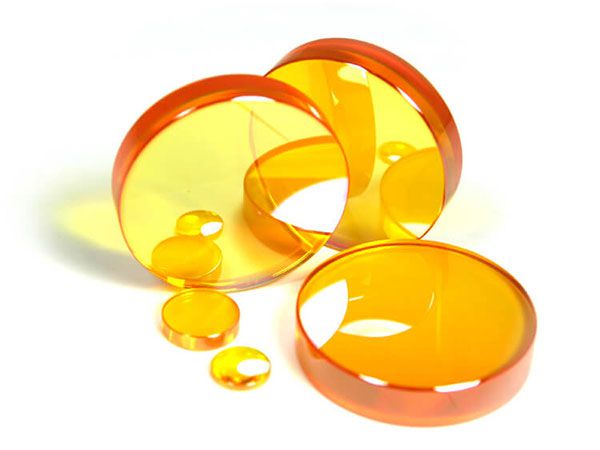

Optical components
US II-VI optical lens and ZNSE focus lens are used for high cutting efficiency.
-
-

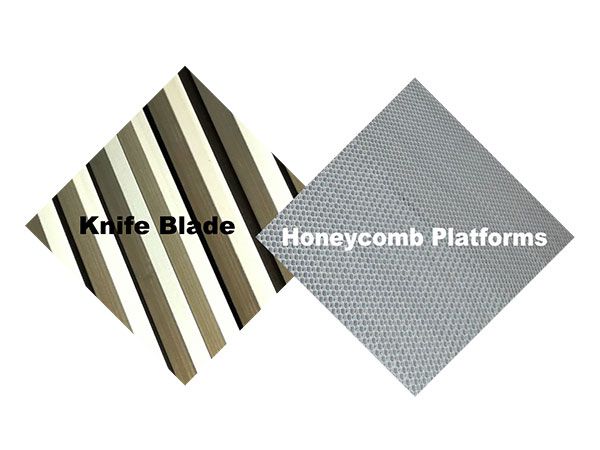

Dual worktable
Aluminum slat worktable ensures high cutting quality. Honeycomb worktable is selectable for cutting soft materials.
