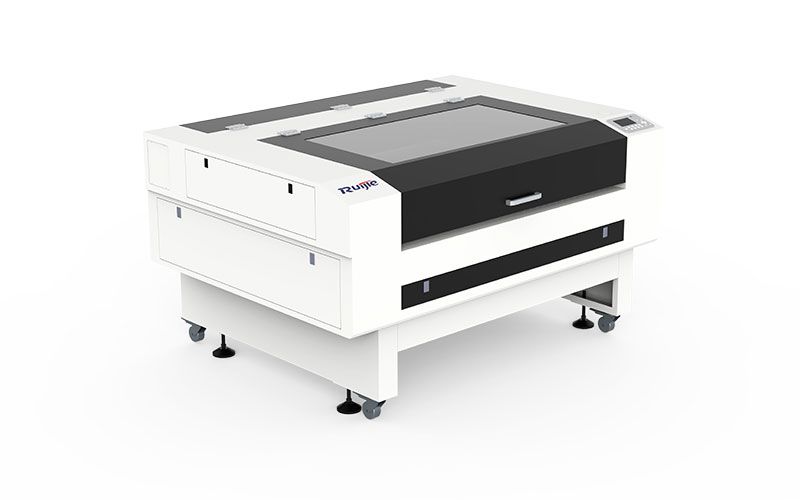

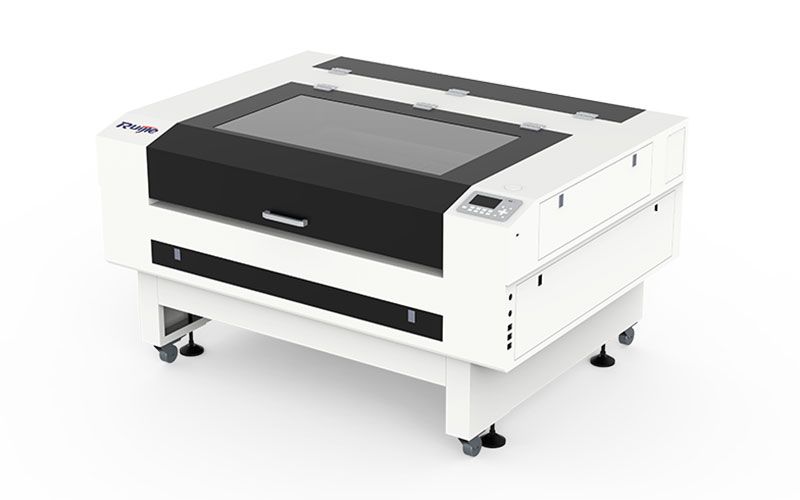

CO2 Laser Cutting and Engraving Machine, RJ-1390C
RJ-1390C CO2 laser cutting and engraving machine features an automatic lifting platform that is designed in response to customer needs of thick materials processing.
| Working area (optional) | 600×400mm, 1000×600mm, 1300×900mm, 1500×900mm, 1600×1200mm |
| Laser tube type | DC glass laser tube (CO2) |
| Laser wavelength | 10.6um |
| Laser power | 40W,60W,80W,130W,150W |
| Engraving speed | 0-1200 mm/s |
| Cutting speed | 0-600mm/s |
| Repositioning accuracy | ≤±0.01mm |
| Cooling system | Water cooling system |
| Control system | Digital offline control system |
| Drive system | Stepper motor |
| Minimum character size | Chinese:1.5mm English:1mm |
| Power supply | AC 220V/110V ±10% 50HZ/60HZ |
| File format | PLT,DST,DXF,DWG,AL,LAS |
| Software | Support AutoCAD, CorelDRAW output directly |
| Working environment | Temperature: 0-45°C Humidity: 5%-95% |
Crafts
souvenirs, gifts, wooden packaging boxes, bamboo crafts, wood planks, wood plaques, bamboo plaques
Signs
leather signs, embroidered signs, trademarks, appliques
Acrylic products
acrylic trophies, acrylic signs, acrylic models, acrylic crafts
Construction & decorative materials
marble headstones, glass sculptures, wall tiles, marble wall arts
Textiles
tablecloth, sofa, cushion, jeans, fabric
-
-

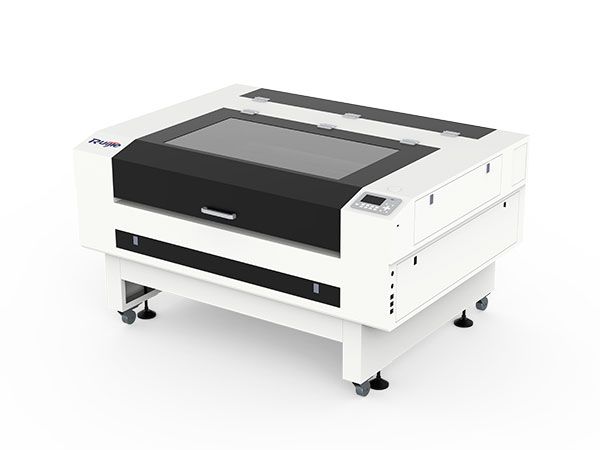

Detachable machine body
The detachable design allows the machine to be easily transported.
-
-

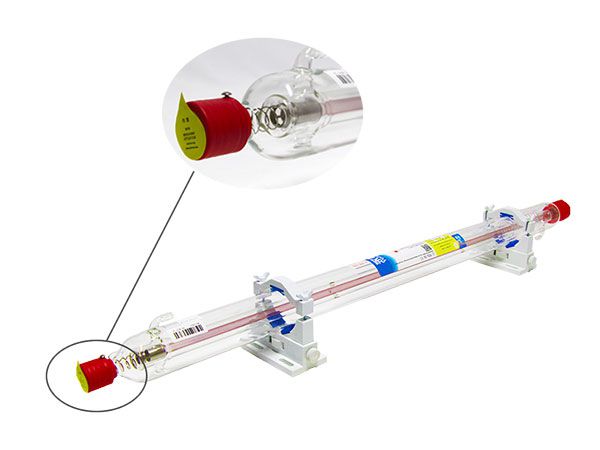

Laser tube
Yongli or RECI CO2 laser tube is adopted due to their mature technology and reliable quality, ensuring stable cutting speed and high cutting precision. The CO2 laser tubes are featured by long service life and low failure rate.
-
-

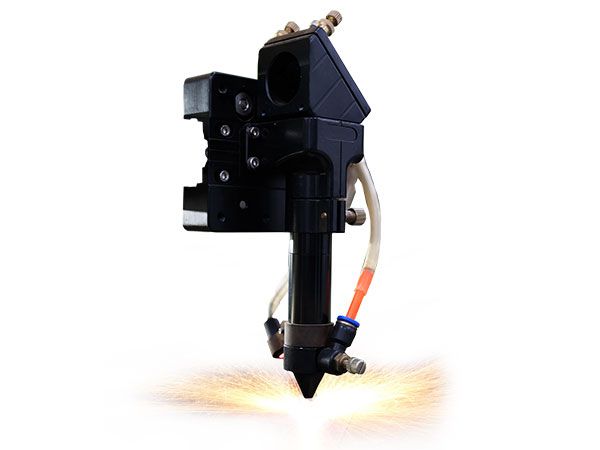

Laser head
Red dot pointer system quickly indicates laser head's path, enabling it to achieve high cutting precision, and automatic focus adjustment to improve cutting speed and working efficiency.
-
-

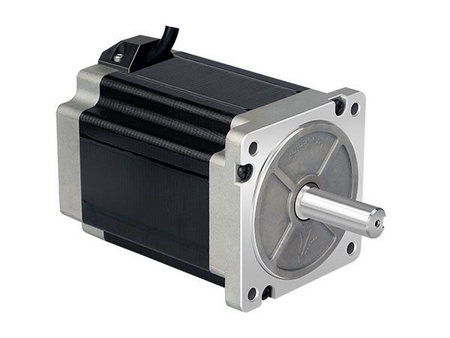

Stepper motor
Leadshine stepper motor drive system offers increased running speed, reduced noise level and lower motor heating, thus resulting in guaranteed operating reliability and positioning accuracy.
-
-

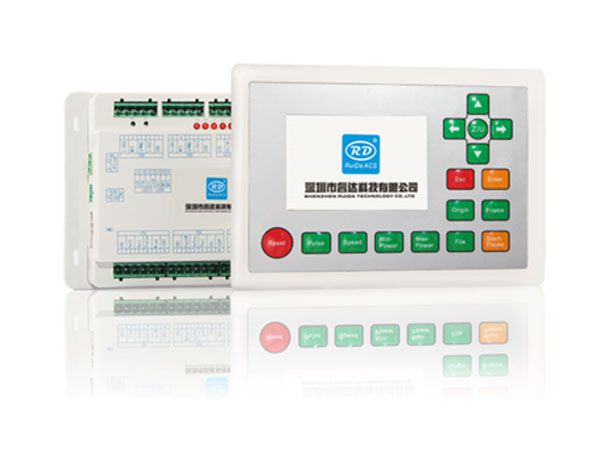

Control system
Digital offline control system has USB port, RD and Lettro alternative. The user-friendly interface makes operation easier.
-
-

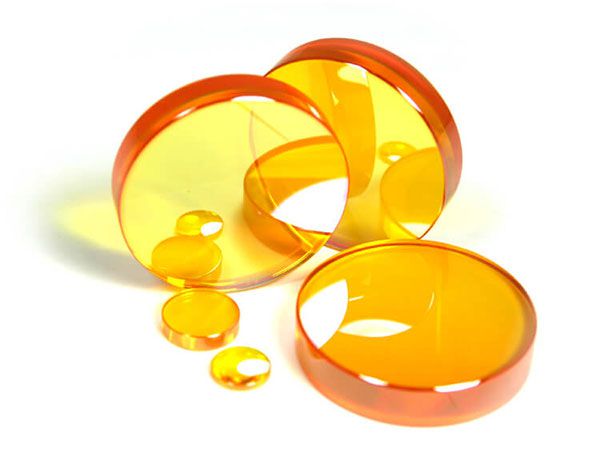

Optical components
US II-VI optical lens and ZNSE focus lens are used for high cutting efficiency.
-
-

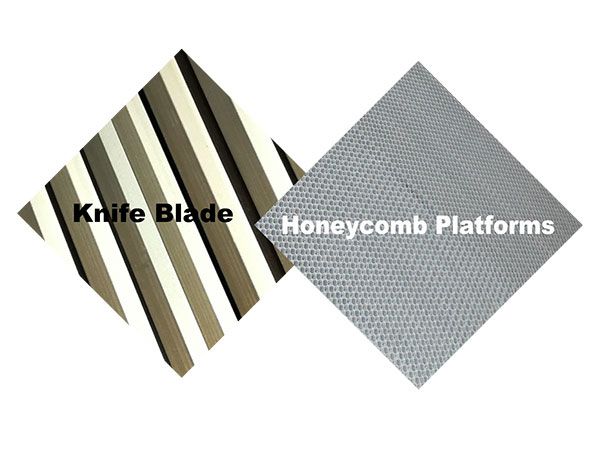

Dual worktable
Aluminum slat worktable ensures high cutting quality. Honeycomb worktable is selectable for cutting soft materials.
